MECHANISM FOR INITIATION CATION POLYMERIZATION OF p-METYLSTYRENE IN THE PRESENCE OF BF3 ∙ HF CATALYST IN TOLUENE AT 1: 1: 2 RATIO

1V.A. Babkin, 1D.S. Andreev, 1A.V. Ignatov, 1S.Zh. Khachatryan, 2,3E.S. Titova, 3A.R. Titova, 2A.I. Rakhimov, 2V.T. Fomichev

1Volgograd State Technical University (Sebryakovsky br.), 403343 Volgograd Region, Mikhailovka, Michurina st., 21.
e-mail: babkin_v.a@mail.ru
2Volgograd State Technical University, 400005 Volgograd, Lenin av., 28.
e-mail: titova051@rambler.ru
3Volgograd State Medical University, 400131 Pavshikh Bortsov sq., 1.
e-mail: titova051@rambler.ru

Abstract: In this paper, initiation mechanism of cationic polymerization of p-methylstyrene in the presence of a complex catalyst BF3 ∙ HF in toluene at the ratio of 1: 1: 2 has been studied by ab initio method. The values of activation energies and reaction enthalpy are estimated.

Keywords: initiation mechanism, p-methylstyrene, boron fluoride catalyst - hydrogen fluoride, toluene, activation energy, enthalpy, ab initio method.

Introduction

Boron fluoride - hydrogen fluoride (BF3∙HF) is a typical catalyst for cationic polymerization [1], the classical stages of which are initiation, growth and termination of material chain [2]. It is obvious that varying the character of Lewis acid (for example, BF3, BF2CH3, BF(CH3)2, B(CH3)3, BF2CH5, etc.) and Brønsted acid (HF, HCl, HBr, etc.) in catalyst composition, as well as the stoichiometric composition “catalyst : solvent” (1: 1 (in this case - toluene), 1: 2, 1: 3, 1: 4, etc.) opens up in practice the possibility of controlling the polymerization process at initiation stage, up to production of a polymer (oligomer, telomer, and, in particular - poly-p-methylstyrene) with specified physicochemical properties. In this regard, the aim of this paper is to study the initiation mechanism of cationic polymerization of p-methylstyrene in toluene under the action of BF3 ∙ HF catalyst in the ratio “BF3 ∙ HF - p-methylstyrene (1): toluene (2)”, and to calculate the activation energies (EA) and the enthalpy (ΔН) of reaction, which cannot be determined experimentally. The initiation mechanism for BF3 ∙ HF - p-methylstyrene - toluene system with stoichiometric composition 1: 1: 1 was studied in [3].

Methodical part

A quantum chemical study of initiation mechanism of p-methylstyrene was carried out by ab initio RHF/6-311G** method [4] in accordance with procedure, for example, described in [5-8], using software [9-11]. The reaction coordinate is RC(1)H(20).

Calculation results

The results of quantum chemical calculations of the initial model, the formed active center (AC), the energy profile of reaction and the change of atoms charges (directly involved in this reaction) are shown in Figure 1-4 and in Table 1.

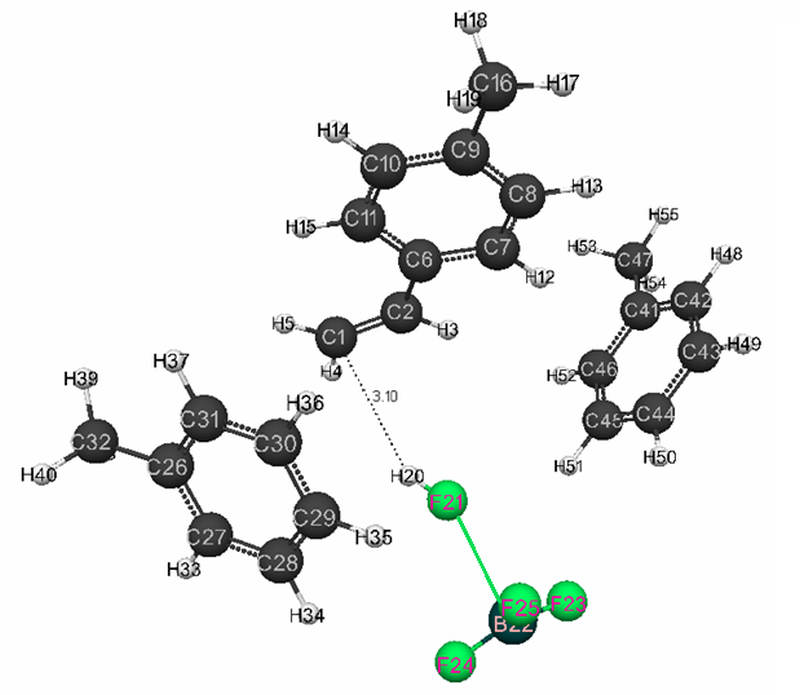

Figure 1. Initial model of interaction reaction of complex catalyst HF · BF3 with p-methylstyrene in toluene with stoichiometric composition 1: 1: 2.

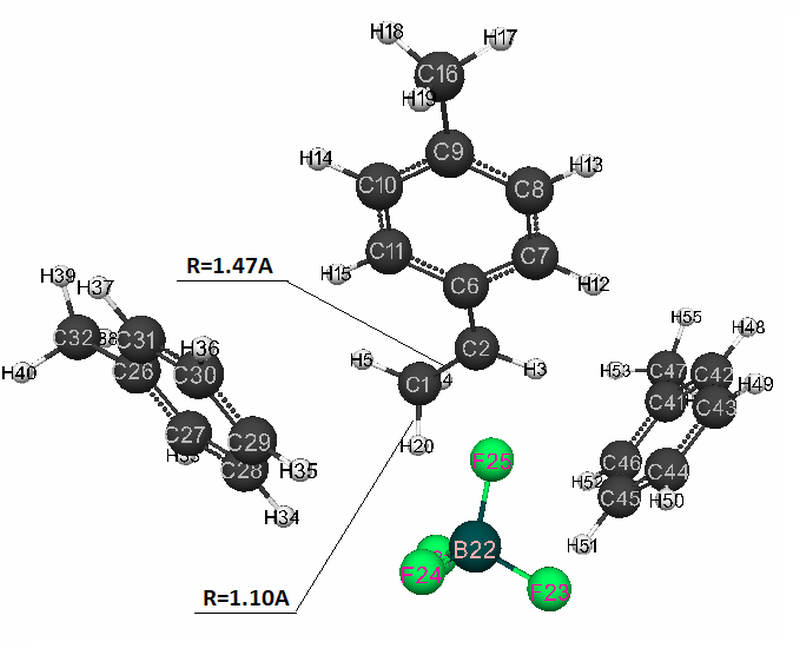

Figure 2. The result of reaction of complex catalyst HF · BF3 with p-methylstyrene in toluene with stoichiometric composition 1: 1: 2.

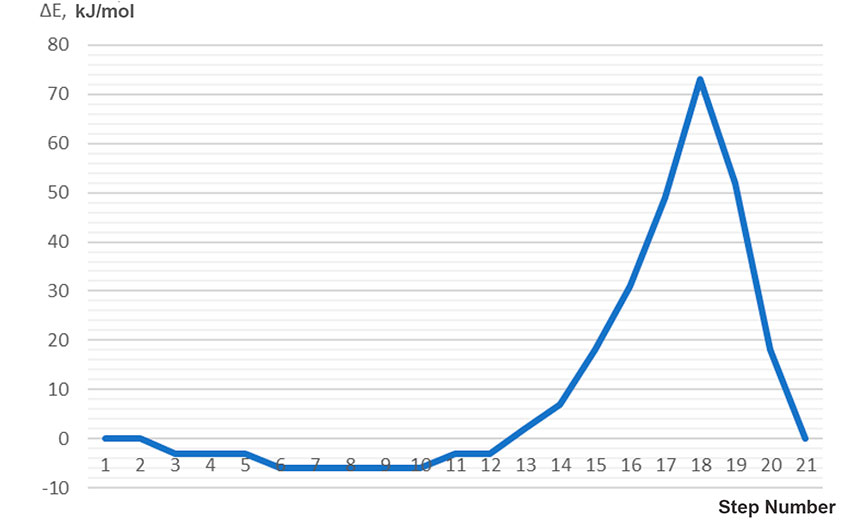

Figure 3. Change in total energy (E) along the coordinate of studied reaction (No. 1-21 - interaction steps).

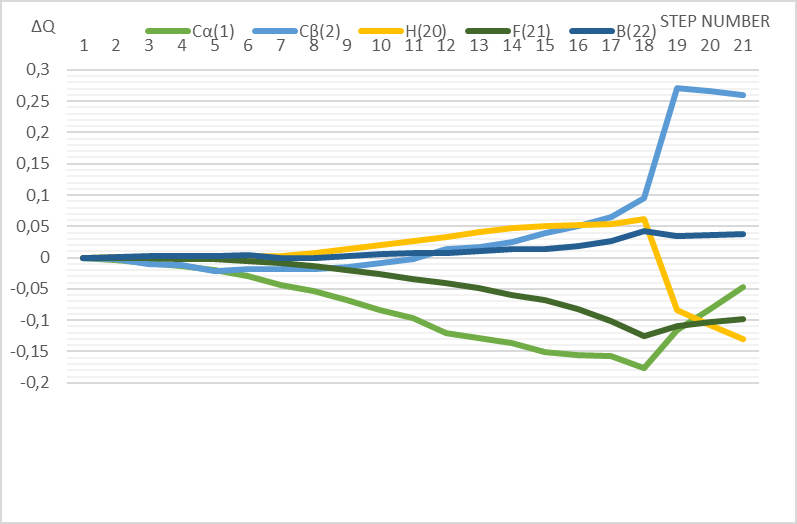

Figure 4. Changes of atoms charges directly involved in reaction:

C (1), C (2), H (20), F (21) and B (22).

The values of all atoms charges of the molecular system at extremum points along the reaction coordinate RH(20)-C(1) are listed in Table 1. From Table 1 it can be seen that the law of charge conservation clearly runs at each stage of components interaction.

Table 1. Atoms charges at extremum points (steps 1, 9, 12, 18, 21).

Atom

No. of step

1

9

12

18

21

C(1)α

-0,210

-0,277

-0,331

-0,387

-0,257

C(2)β

-0,136

-0,151

-0,122

-0,041

0,124

H(3)

0,122

0,127

0,128

0,144

0,232

H(4)

0,114

0,130

0,136

0,146

0,129

H(5)

0,107

0,136

0,150

0,163

0,118

C(6)

-0,090

-0,088

-0,095

-0,134

-0,181

C(7)

-0,063

-0,052

-0,045

-0,024

0,052

C(8)

-0,097

-0,098

-0,097

-0,100

-0,120

C(9)

-0,120

-0,116

-0,114

-0,102

-0,051

C(10)

-0,095

-0,096

-0,096

-0,102

-0,118

C(11)

-0,051

-0,043

-0,044

-0,017

0,048

H(12)

0,135

0,138

0,132

0,122

0,137

H(13)

0,084

0,085

0,086

0,090

0,110

H(14)

0,082

0,085

0,086

0,092

0,110

H(15)

0,088

0,097

0,104

0,122

0,153

C(16)

-0,176

-0,177

-0,178

-0,180

-0,187

H(17)

0,094

0,095

0,095

0,098

0,116

H(18)

0,108

0,107

0,109

0,111

0,118

H(19)

0,105

0,109

0,109

0,117

0,142

H(20)

0,357

0,371

0,390

0,419

0,227

F(21)

-0,343

-0,363

-0,383

-0,468

-0,441

B(22)

0,821

0,824

0,828

0,863

0,859

F(23)

-0,269

-0,273

-0,276

-0,302

-0,403

F(24)

-0,274

-0,272

-0,276

-0,301

-0,398

F(25)

-0,278

-0,277

-0,280

-0,316

-0,482

C(26)

-0,121

-0,120

-0,120

-0,121

-0,124

C(27)

-0,090

-0,099

-0,100

-0,100

-0,122

C(28)

-0,115

-0,098

-0,097

-0,109

-0,112

C(29)

-0,176

-0,136

-0,132

-0,129

-0,125

C(30)

-0,058

-0,084

-0,089

-0,091

-0,087

C(31)

-0,099

-0,105

-0,098

-0,092

-0,116

C(32)

-0,177

-0,176

-0,177

-0,177

-0,173

H(33)

0,090

0,087

0,087

0,087

0,086

H(34)

0,118

0,113

0,114

0,123

0,146

H(35)

0,119

0,116

0,114

0,117

0,141

H(36)

0,103

0,096

0,095

0,093

0,090

H(37)

0,088

0,085

0,085

0,084

0,080

H(38)

0,102

0,097

0,098

0,099

0,093

H(39)

0,094

0,096

0,096

0,094

0,090

H(40)

0,115

0,112

0,112

0,112

0,115

C(41)

-0,115

-0,113

-0,113

-0,114

-0,120

C(42)

-0,099

-0,107

-0,107

-0,105

-0,105

C(43)

-0,088

-0,084

-0,086

-0,088

-0,102

C(44)

-0,121

-0,120

-0,117

-0,119

-0,139

C(45)

-0,083

-0,091

-0,094

-0,104

-0,116

C(46)

-0,110

-0,115

-0,113

-0,116

-0,118

C(47)

-0,176

-0,174

-0,175

-0,175

-0,172

H(48)

0,084

0,086

0,086

0,086

0,084

H(49)

0,094

0,095

0,096

0,096

0,095

H(50)

0,105

0,108

0,111

0,121

0,142

H(51)

0,111

0,114

0,112

0,120

0,142

H(52)

0,086

0,087

0,087

0,087

0,090

H(53)

0,104

0,096

0,096

0,097

0,094

H(54)

0,109

0,113

0,113

0,114

0,116

H(55)

0,093

0,099

0,098

0,096

0,092

Thus, in this paper we performed the quantum chemical study of initiation mechanism of cationic polymerization of p-methylstyrene under the action of complex catalyst BF3 ∙ HF with toluene in the 1: 1: 2 ratio by ab initio method. Analysis of atoms charges changes directly involved in this reaction (see Figure 4), behavior of reaction fragments, breaking and formation of new bonds indicate that the mechanism under study is usual acceptance of H (1)+ proton from BF3 ∙ HF catalyst and its addition to α-carbon monomer atom. The calculated values EA = 73 kJ/mol, ΔH = 0 kJ/mol.

References

  1. Kennedy, J., Cationic polymerization of olefins. Mir Publishing House, Moscow, 1978, 431 p. (in Russian)
  2. Odian, G., Principles of polymerization, Mir Publishing House, Moscow, 1974, 614 р. (in Russian)
  3. Babkin, V.А., Andreev D.S., Ignatov А.V. and others, Calculation of interaction mechanism for complex catalyst HF-BF3 with p-methylstyrene in toluene with stoichiometric composition 1:1:1 by ab initio method, Fluorine Notes, 2021, 2(135), 3-4.
  4. Cirelson V.G., Quantum Chemistry. Molecules, molecular systems and solids, Moscow, Publishing House «Binom», 2010, 496 p. (in Russian)
  5. V. A. Babkin and others, Quantum-chemical research of the interaction mechanism of the complex catalyst chloride aluminium-hydrochloric acid and p-methylstyrene in toluene by the ab initio method, Oxidation Communications, 2020, 43(2), 171-176.
  6. V. A. Babkin and others, Quantum chemical calculation of initiation mechanism of cationic polymerisation of propylene with chloride-aluminium aquacomplex, Oxidation Communications, 2020, 43(1), 24-29.
  7. V. A. Babkin and others, Quantum chemical investigation of the initiation mechanism of the cationic polymerisation of 4-methylpentene-1 with chloride-aluminum aquacomplex, Oxidation Communications, 2019, 42(3),275-281.
  8. V. A. Babkin and others, On the mechanism of cationic polymerisation of p-isopropylstyrene in the presence of a complex catalyst boron fluoride-water, Oxidation Communications, 2019, 42(1), 56-62.
  9. Granovsky, A. A., Firefly version 8, 2013. http://classic.chem.msu.su/gran/firefly/index.html
  10. M.W. Schmidt and others, General Atomic and Molecular Electronic Structure System, J. Comput. Chem., 1993, 14, 1347-1363.
  11. B.M. Bode, M.S. Gordon, MacMolPlt: A Graphical User Interface for GAMESS, Journal of Molecular Graphics, 1998, 16, 133-138.
