Received: October 2017

DOI 10.17677/fn20714807.2017.06.02

Fluorine Notes, 2017, 115, 3-4

Photocatalytic radical addition of 1,1,2,2-tetrafluoro-1-iodoethane to alkenes

Svatava Voltrová and Petr Beier*

Institute of Organic Chemistry and Biochemistry of the Czech Academy of Sciences, Flemingovo nám. 542/2, 166 10 Prague 6, Czech Republic

E-mail: beier@uochb.cas.cz

Abstract: Photocatalytic radical addition and addition-elimination reactions of terminal alkenes with 1,1,2,2-tetrafluoro-1-iodoethane under a blue LED light irradiation are reported. The photoredox catalysis with Rhodamine B or Eosin Y provided the corresponding 1,1,2,2-tetrafluoro-4-iodoalkanes or 1,1,2,2-tetrafluoroalkenes, respectively, in good yields. The obtained iododerivatives were successfully hydrodeiodinated to form saturated 1,1,2,2-tetrafluoroalkanes.

Keywords: photocatalysis; radical addition; Rhodamine B; Eosin Y; tetrafluoroiodoethane; LED

Introduction

Radical perfluoroalkylation is a popular method for the incorporation of perfluoroalkyl groups into organic molecules with a purpose of influencing properties of compounds [1-2]. Traditionally, perfluoroalkyl halides were used for the generation of perfluoroalkyl radicals; however, more recently metal sulfonates and sulfonyl chlorides have proven to be suitable perfluoroalkyl radical precursors [3-7]. Various approaches for homolytic cleavage of the carbon-halogen bond of perfluoroalkyl halides have been reported, these include radical initiators (AIBN [8], Et₃B [9], or peroxide [10]), metals (magnesium [11], iron [1], or copper [12]), Na₂S₂O₄ [13], catalytic triphenylphosphine [14], or UV light [15-16]. Recently, photoredox catalysis and in particular visible-light-promoted perfluoroalkylation [7, 17-20] have emerged as alternatives to initiator-promoted radical perfluoroalkylations. In this field, organic dyes enjoy an advantage over expensive ruthenium or iridium photocatalysts. Here we report Rhodamine B or Eosin Y catalyzed photocatalytic radical addition or addition-elimination, respectively, of HCF₂CF₂I to terminal alkenes. Compounds with the tetrafluoroethyl group are rare [21-26] and this work should improve access to them in order to study their properties.

Results and discussion

In this work, we have used a blue LED light excited Rhodamine B [27] or Eosine Y [28] as photocatalysts in radical addition or addition-elimination reactions of HCF₂CF₂I with alkenes. Terminal alkenes 1 bearing different functional groups (alkyl, aryl, halogen, carbonyl, epoxy, hydroxyl, carboxylic acid) underwent radical addition of only equimolar amount of 1,1,2,2-tetrafluoro-1-iodoethane (2) in the presence of (i-Pr)₂NEt and catalytic Rhodamine B in water to form the corresponding tetrafluoroiodoalkanes 3 in high yields (Scheme 1). Reactions proceeded smoothly at ambient temperature and complete conversion of 1 was reached under 16 hours (GC-MS control). Interestingly, an experiment with 3b revealed that a green LED light (525 nm) could be used with similar efficiency to the blue light. Under the conditions shown in Scheme 1, hex-1-yne and cis-stilbene did not lead to the addition products.

Scheme 1

The ¹⁹F NMR spectra of iodo derivatives 3 showed an interesting splitting patterns owing to the presence of magnetically non-equivalent (diastereotopic) fluorine atoms (Figure 1).

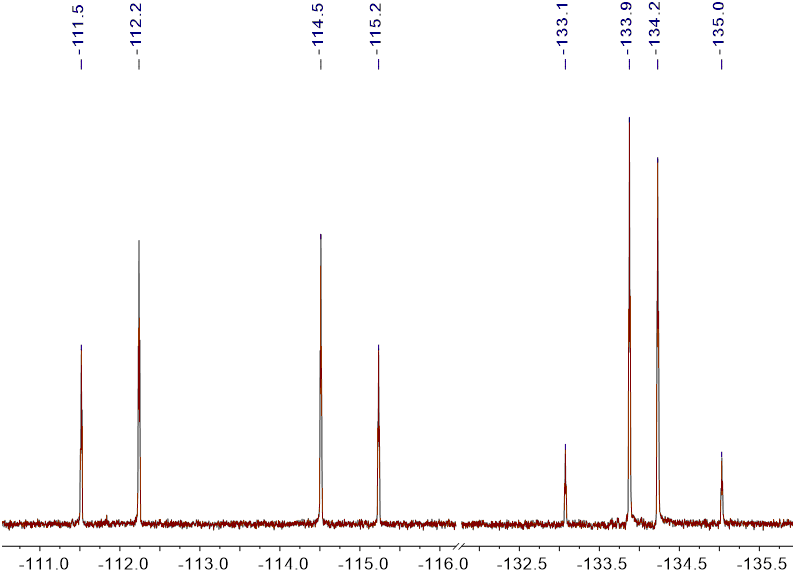

Figure 1 ¹⁹F {¹H} NMR spectrum of 3a

It can be expected that the mechanism operating involves a homolytic cleavage of the carbon-iodine bond and the formation of radicals which add to terminal alkenes. In order to probe this mechanism a reaction with diethyl 2,2-diallylmalonate (4) was performed. The formed fluoroalkyl radical induced a cascade radical addition – 5-exo-trig cyclization to the cyclopentane product 5, which was isolated in good yield and high cis-selectivity (Scheme 2).

Scheme 2

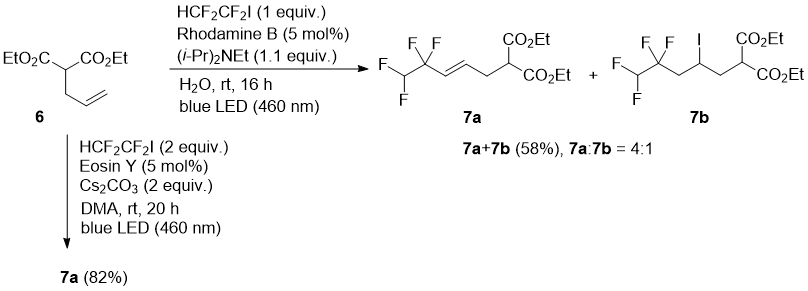

Diethyl allylmalonate (6) afforded under the Rhodamine B catalysis mostly alkene 7a (product of HI elimination after radical addition) in a mixture with addition product 7b. However, using Eosin Y as a photocatalyst, clean formation of 7a was observed (Scheme 3). The formation of the elimination product is in an agreement with previous report using Eosin Y and cesium carbonate [28].

Scheme 3

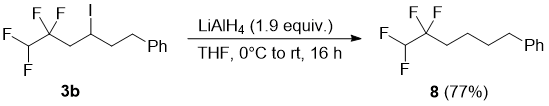

Next, we turned our attention to substitution of iodine atom of compounds 3 for hydrogen in order to access terminal tetrafluoroethyl-substituted aliphatic compounds. Towards this goal, compound 3b was treated with excess LiAlH₄ in THF to form (5,5,6,6-tetrafluorohexyl)benzene (8) in high yield (Scheme 4). This reaction was found to be substrate dependent: when epoxide 3g was reduced either with LiAlH₄ or with H₂/Pd, no reaction was observed even after prolonged reaction time (48 h) and the starting compound was isolated unchanged. The ¹⁹F NMR spectrum of 8 contains two set of signals: a doublet (²J_FH = 54.0 Hz) for the CF₂H group and a triplet of doublets (³J_FH = 18.2, 2.0 Hz) for the CF₂ group (Figure 2).

Scheme 4

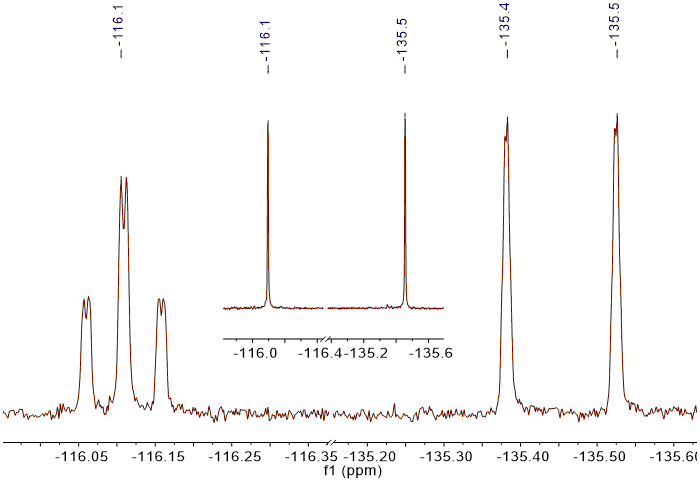

Figure 2. ¹⁹F NMR spectrum of 8; ¹⁹F {¹H} spectrum is shown as an insert

Conclusion

In conclusion, a combination of inexpensive organic dye catalyst and LED light radical addition of tetrafluoroiodoethane to terminal alkenes afforded 1,1,2,2-tetrafluoro-4-iodoalkanes in high yields. Alternatively, radical addition and subsequent HI elimination provided the corresponding 1,1,2,2-tetrafluoroalkenes. The iodo derivative was hydrodeiodinated with lithium aluminum hydride to form saturated 1,1,2,2-tetrafluoroalkane. Thus, tetrafluoroiodomethane (HCF₂CF₂I) proved to be a useful and general reagent for radical introduction of the HCF₂CF₂ group under photocatalytic conditions.

Experimental part

General. Reactions with air-sensitive materials were carried out under argon atmosphere using standard Schlenk techniques. All commercially available chemicals were used as received unless stated otherwise. Flash column chromatography was performed using silica gel 60 (0.040–0.063 mm). ¹H, ¹³C, and ¹⁹F NMR spectra were measured at ambient temperature using 5 mm diameter NMR tubes. ¹³C NMR spectra were proton decoupled. The chemical shift values (δ) are reported in ppm relative to internal Me₄Si (0 ppm for ¹H and ¹³C NMR) or residual solvents and internal CFCl₃ (0 ppm for ¹⁹F NMR). Coupling constants (J) are reported in Hertz. GC-MS spectra were recorded using a 5% phenyl methylpolysiloxane column coupled with a quadrupole mass-selective electron impact (EI) detector (70 eV). High resolution MS spectra (HRMS) were recorded using electrospray (ESI), electron impact (EI) or dual ESI/MALDI ionizations. A 3 W LED sources (blue 455-475 nm or green 515-535 nm) containing a light-conductive glass rod immersed directly into the reaction vessel were used.

Synthesis of compounds 3. A mixture of alkene 1 (1.0 mmol) and water (10 mL) was cooled to 0 °C and degassed using three pump-thaw cycles under nitrogen atmosphere. To this emulsion were added (i-Pr)₂NEt (192 μL, 1.10 mmol), Rhodamine B (24 mg, 0.05 mmol), and HCF₂CF₂I (227 mg, 103 μL, 1.0 mmol) using a pre-cooled syringe at 0 °C. The stirred reaction mixture was warmed to rt and irradiated with a blue LED lamp for 16 h (GC-MS control). The reaction mixture was then diluted with Et₂O, washed with water and brine. The organic layer was dried (MgSO₄) and concentrated under reduced pressure. The residue was purified by silica gel column chromatography (hexane:EtOAc, 97:3) to afford product 3.

1,1,2,2-Tetrafluoro-4-iodododecane (3a): Yield: 80%; colorless oil, ¹H NMR (400 MHz, CDCl₃) δ 5.72 (tdd, J = 53.9, 3.0, 2.3 Hz, 1H), 4.39–4.27 (m, 1H), 2.96–2.57 (m, 2H), 1.91–1.69 (m, 2H), 1.61–1.38 (m, 2H), 1.36–1.21 (m, 10H), 0.89 (t, J = 7.1 Hz, 3H); ¹³C NMR (101 MHz, CDCl₃) δ 117.52 (tt, J = 249.2, 29.4 Hz), 110.03 (tt, J = 249.9, 41.1 Hz), 40.85 (t, J = 21.2 Hz), 40.64, 31.99, 29.73, 29.51, 29.37, 28.71, 22.81, 22.41 (t, J = 2.0 Hz), 14.24; ¹⁹F NMR (377 MHz, CDCl₃) δ –112.75 to –117.32 (m, 2F), –134.35 to –137.52 (m, 2F).; HRMS (EI⁺) m/z calcd for C₁₂H₂₁F₄I [M]⁺: 368.0624, found 368.0621.

(5,5,6,6-Tetrafluoro-3-iodohexyl)benzene (3b): Yield: 92%; colorless oil, ¹H NMR (400 MHz, CDCl₃) δ 7.35–7.26 (m, 2H), 7.27–7.17 (m, 3H), 5.70 (tdd, J = 53.9, 3.0, 2.2 Hz, 1H), 4.28 (tt, J = 8.4, 5.3 Hz, 1H), 3.00–2.63 (m, 4H), 2.13 (tt, J = 7.9, 5.0 Hz, 2H); ¹³C NMR (101 MHz, CDCl₃) δ 140.25, 128.71, 128.66, 126.46, 117.50 (tt, J = 249.5, 29.6 Hz), 109.97 (tt, J = 250.1, 41.1 Hz), 42.06 (d, J = 2.1 Hz), 40.85 (t, J = 21.2 Hz), 35.84, 21.52 (t, J = 2.5 Hz).; ¹⁹F NMR (376 MHz, CDCl₃) δ –111.96 to –116.66 (m, 2F), –133.82 to –136.55 (m, 2F); HRMS (EI⁺) m/z calcd for C₁₂H₁₃F₄I [M]⁺: 359.9998, found 359.9994.

12,12,13,13-Tetrafluoro-10-iodotridecan-1-ol (3c): Yield: 88%; colorless oil, ¹H NMR (400 MHz, CDCl₃) δ 5.71 (tt, J = 53.9, 2.7 Hz, 1H), 4.31 (tt, J = 8.6, 5.1 Hz, 1H), 3.61 (t, J = 6.2 Hz, 2H), 2.89–2.58 (m, 2H), 2.02 (s, 1H), 1.84–1.70 (m, 2H), 1.59–1.49 (m, 2H), 1.40–1.21 (m, 12H); ¹³C NMR (101 MHz, CDCl₃) δ 117.46 (tt, J = 249.1, 29.4 Hz), 109.96 (tt, J = 250.0, 41.0 Hz), 63.07, 40.78 (t, J = 21.1 Hz), 40.53 (d, J = 1.9 Hz), 32.86, 29.64, 29.57, 29.46, 29.40, 28.60, 25.82, 22.39; ¹⁹F NMR (376 MHz, CDCl₃) δ –113.20 to –117.20 (m), –134.18 to –137.30 (m); HRMS (ESI⁺) m/z calcd for C₁₃H₂₄F₄IO [M+H]⁺: 399.0808, found 399.0811.

7,7,8,8-Tetrafluoro-5-iodooctan-2-one (3d): Yield: 95%; colorless oil, ¹H NMR (400 MHz, CDCl₃) δ 5.74 (tdd, J = 53.8, 3.2, 2.2 Hz, 1H), 4.49–4.23 (m, 1H), 2.99–2.55 (m, 4H), 2.17 (s, 3H), 2.16–2.07 (m, 1H), 1.97 (dddd, J = 15.2, 9.8, 8.1, 5.4 Hz, 1H); ¹³C NMR (101 MHz, CDCl₃) δ 206.79, 117.34 (tt, J = 249.4, 29.4 Hz), 109.92 (tt, J = 250.1, 40.8 Hz), 43.75, 41.03 (t, J = 21.3 Hz), 34.25 (d, J = 2.2 Hz), 30.21, 21.21 (t, J = 2.7 Hz); ¹⁹F NMR (376 MHz, CDCl₃) δ –112.26 to –116.45 (m), –134.10 to –136.77 (m); HRMS (ESI⁺) m/z calcd for C₈H₁₂F₄IO [M+H]⁺: 326.9869, found 326.9866.

13-Bromo-1,1,2,2-tetrafluoro-4-iodotridecane (3e): Yield: 83%; colorless oil, ¹H NMR (400 MHz, CDCl₃) δ 5.72 (tdd, J = 53.9, 3.1, 2.2 Hz, 1H), 4.32 (tdd, J = 8.3, 5.8, 4.3 Hz, 1H), 3.40 (t, J = 6.8 Hz, 2H), 2.92–2.55 (m, 2H), 1.90–1.80 (m, 4H), 1.36–1.23 (m, 12H); ¹³C NMR (101 MHz, CDCl₃) δ 117.48 (tt, J = 249.1, 29.4 Hz), 114.26, 109.98 (tt, J = 250.0, 41.0 Hz), 40.81 (t, J = 21.2 Hz), 40.54 (d, J = 1.9 Hz), 34.11, 32.93, 29.65, 29.42, 29.37, 28.81, 28.59, 28.26, 22.37; ¹⁹F NMR (376 MHz, CDCl₃) δ –112.92 to –117.43 (m), –134.50 to –137.09 (m); HRMS (EI⁺) m/z calcd for C₁₃H₂₁F₄BrI [M–H]⁺: 458.9808, found 368.9799.

12,12,13,13-Tetrafluoro-10-iodotridecanoic acid (3f): Yield: 97%; colorless oil, ¹H NMR (400 MHz, CDCl₃) δ 5.72 (tt, J = 53.9, 2.7 Hz, 1H), 4.32 (tdd, J = 8.3, 5.7, 4.3 Hz, 1H), 2.95–2.55 (m, 2H), 2.35 (t, J = 7.5 Hz, 2H), 1.79 (ddp, J = 19.7, 9.8, 4.5 Hz, 2H), 1.63 (p, J = 7.4 Hz, 2H), 1.53 (tq, J = 7.7, 3.8, 2.8 Hz, 1H), 1.42–1.29 (m, 9H); ¹³C NMR (101 MHz, CDCl₃) δ 180.37, 117.51 (tt, J = 249.1, 29.4 Hz), 110.01 (tt, J = 250.1, 41.1 Hz), 40.81 (t, J = 21.1 Hz), 40.54 (d, J = 1.9 Hz), 34.18, 29.65, 29.27, 29.24, 29.10, 28.57, 24.75, 22.37 (t, J = 2.5 Hz); ¹⁹F NMR (376 MHz, CDCl₃) δ –112.70 to –117.55 (m), –134.26 to –137.53 (m); HRMS (ESI⁺) m/z calcd for C₁₃H₂₂F₄IO₂ [M+H]⁺: 413.0601, found 413.0602.

2-(9,9,10,10-Tetrafluoro-7-iododecyl)oxirane (3g): Yield: 74%; colorless oil, ¹H NMR (400 MHz, CDCl₃) δ 5.71 (tdd, J = 53.9, 3.2, 2.2 Hz, 1H), 4.31 (tdd, J = 8.3, 5.7, 4.3 Hz, 1H), 2.89 (tdd, J = 5.0, 3.9, 2.7 Hz, 1H), 2.86–2.60 (m, 2H), 2.77–2.68 (m, 1H), 2.45 (dd, J = 5.0, 2.7 Hz, 1H), 1.78 (ddt, J = 14.7, 9.6, 5.0 Hz, 2H), 1.58–1.22 (m, 10H); ¹³C NMR (101 MHz, CDCl₃) δ 117.48 (tt, J = 249.2, 29.4 Hz), 109.97 (tt, J = 250.1, 41.0 Hz), 52.41, 47.18, 40.79 (t, J = 21.2 Hz), 40.46 (d, J = 1.8 Hz), 32.52, 29.57, 29.28, 28.54 (d, J = 1.8 Hz), 25.99, 22.27 (t, J = 2.5 Hz); ¹⁹F NMR (376 MHz, CDCl₃) δ –112.73 to –117.45 (m), –134.39 to –137.12 (m); HRMS (ESI⁺) m/z calcd for C₁₂H₂₀F₄IO [M+H]⁺: 383.0495, found 383.0493.

Synthesis of compound 5, (diethyl cis-3-(iodomethyl)-4-(2,2,3,3-tetrafluoropropyl)cyclopentane-1,1-dicarboxylate): Diethyl 2,2-diallylmalonate (4) (120 mg, 0.5 mmol) and water (5 mL) were cooled to 0 °C and degassed using three pump−thaw cycles under nitrogen atmosphere. To this emulsion was added Rhodamine B (12 mg, 0.025 mmol) and then iodide 2 (227 mg, 103 μL, 1.0 mmol) by pre-cooled syringe at 0 °C. The stirred reaction mixture was warmed to rt and irradiated with a blue LED lamp for 16 h (GC-MS control). The reaction mixture was then diluted with Et₂O and washed with water and brine. The organic phase was dried (MgSO₄) and concentrated under reduced pressure. The residue was purified by silica gel column chromatography (hexane:EtOAc, 99:1) to afford product 5 (180 mg of yellow oil, 76% yield) as the mixture of cis:trans isomers in ratio 95:5. ¹H NMR (400 MHz, CDCl₃) δ 5.70 (tt, J = 54.0, 2.6 Hz, 1H), 5.11–5.07 (m, 1H), 5.06 (t, J = 1.2 Hz, 1H), 4.26–4.08 (m, 4H), 3.18 (ddd, J = 9.8, 5.2, 1.0 Hz, 1H), 3.01 (t, J = 9.9 Hz, 1H), 2.61 (dt, J = 7.5, 1.2 Hz, 2H), 2.57–2.43 (m, 2H), 2.34–2.18 (m, 1H), 2.14–1.82 (m, 1H), 1.28–1.15 (m, 6H); ¹³C NMR (101 MHz, CDCl₃) δ 172.03, 170.70, 132.30, 119.09, 117.85 (tt, J = 247.3, 29.5 Hz), 110.11 (tt, J = 249.4, 41.6 Hz), 61.76 (d, J = 9.6 Hz), 61.19, 45.44, 39.73, 36.70, 35.41 (d, J = 2.2 Hz), 28.45 (t, J = 21.8 Hz), 14.09, 13.97 (d, J = 3.0 Hz); ¹⁹F NMR (376 MHz, CDCl₃) δ –102.18 to –108.83 (m), –125.64 (ddd, J = 53.3, 38.9, 8.5 Hz); HRMS (ESI⁺) m/z calcd for C₁₅H₂₂F₄IO₄ [M+H]⁺: 469.04934, found 469.04935.

Addition of HCF₂CF₂I to diethyl 2-allylmalonate6:

a) Reaction catalyzed with Rhodamine B. A mixture of diethyl 2-allylmalonate (6) (200 mg, 1 mmol) and water (10 mL) was cooled to 0 °C and degassed using three pump−thaw cycles under nitrogen atmosphere. To this emulsion was added (i-Pr)₂NEt (192 μL, 1.10 mmol), Rhodamine B (24 mg, 0.050 mmol), and HCF₂CF₂I (227 mg, 103 μL, 1.0 mmol) by pre-cooled syringe at 0 °C. The stirred reaction mixture was warmed to rt and irradiated with a blue LED lamp for 16 h. The reaction mixture contained according to the GC-MS analysis a mixture of the addition-elimination product 7a and addition product 7b. The dark-red suspension was diluted with Et₂O, washed with water and brine. The organic phase was dried (MgSO₄) and then concentrated under reduced pressure. The residue was purified by silica gel column chromatography (hexane:EtOAc, 95:5) to afford a mixture 7a and 7b (250 mg of dark yellow oil, 58% yield, 7a:7b 4:1).

b) Reaction catalyzed with Eosin Y. A mixture of diethyl 2-allylmalonate (6) (200 mg, 1 mmol) and water (10 mL) was cooled to 0 °C and degassed using three pump−thaw cycles under nitrogen atmosphere. To this emulsion was added Cs₂CO₃ (652 mg, 2 mmol), Eosin Y (32 mg, 0.05 mmol), and HCF₂CF₂I (454 mg, 206 μL, 2.0 mmol) by pre-cooled syringe at 0 °C. The stirred reaction mixture was warmed to rt and irradiated with a blue LED lamp for 20 h. The reaction mixture contained according to the GC-MS analysis pure addition-elimination product 7a. The red suspension was diluted with Et₂O and washed with water and brine. The organic phase was dried (MgSO₄) and concentrated under reduced pressure to yield 247 mg (82%) of colorless oil 7a.

Diethyl (E)-2-(4,4,5,5-tetrafluoropent-2-en-1-yl)malonate (7a): ¹H NMR (400 MHz, CDCl₃) δ 5.75 (tt, J = 53.8, 2.9 Hz, 1H), 4.34–4.07 (m, 4H), 2.40–2.21 (m, 1H), 2.15–2.00 (m, 1H), 1.97–1.77 (m, 1H), 1.54–1.43 (m, 2H), 1.26 (td, J = 7.1, 5.5 Hz, 6H); ¹³C NMR (101 MHz, CDCl₃) δ 169.47, 167.89, 117.38 (tt, J = 247.3, 29.4 Hz), 110.11 (tt, J = 249.4, 40.3 Hz), 61.87, 61.85, 32.99, 29.12 (t, J = 22.4 Hz), 20.25, 19.62 (t, J = 5.5 Hz), 14.15, 14.09; ¹⁹F NMR (376 MHz, CDCl₃) δ –116.19 (t, J = 17.2 Hz), –136.03 (dd, J = 53.7, 26.3 Hz); HRMS (ESI⁺) m/z calcd for C₁₂H₁₇F₄O₄ [M+H]⁺: 301.1063, found 301.1062.

Reduction of (5,5,6,6-tetrafluoro-3-iodohexyl)benzene (3b). (5,5,6,6-Tetrafluorohexyl)benzene (8): Compound 3b (150 mg, 0.42 mmol) was dissolved in dry THF (2 mL) and cooled to 0 °C. LiAlH₄ (30 mg, 0.79 mmol) was then added and the reaction mixture was allowed to warm to rt and stirred for 16 h (GC-MS control). Saturated solution of NH₄Cl (2 mL) and water (30 mL) were added and the reaction mixture was extracted with Et₂O. The organic phase was dried (MgSO₄) and then concentrated under reduced pressure. The residue was purified by silica gel column chromatography in hexane to afford pure 8 (75 mg of colorless oil, 77% yield). ¹H NMR (400 MHz, CDCl₃) δ 7.34–7.29 (m, 2H), 7.25–7.18 (m, 3H), 5.71 (tt, J = 54.1, 2.8 Hz, 1H), 2.67 (t, J = 7.5 Hz, 2H), 2.10–1.91 (m, 2H), 1.78–1.69 (m, 2H), 1.69–1.60 (m, 2H); ¹³C NMR (101 MHz, CDCl₃) δ 141.99, 128.53, 128.50, 126.04, 118.13 (tt, J = 245.8, 29.2 Hz), 110.47 (tt, J = 249.1, 41.5 Hz), 35.73, 31.22, 29.78 (t, J = 22.5 Hz), 20.20 (t, J = 3.8 Hz); ¹⁹F NMR (376 MHz, CDCl₃) δ –116.11 (td, J = 18.2, 2.0 Hz), –135.45 (d, J = 54.0 Hz); HRMS (EI⁺) m/z calcd for C₁₂H₁₄F₄ [M]⁺: 234.1032, found 234.1033.

Acknowledgements: This work was financially supported by the Academy of Sciences of the Czech Republic (RVO: 61388963). We are grateful to P&M Invest Ltd. for the generous gift of HCF₂CF₂I.

References

1. Dolbier, W. R. Chem. Rev. 1996, 96, 1557.
2. Studer, A. Angew. Chem., Int. Ed. 2012, 51, 8950.
3. Ji, Y.; Brueckl, T.; Baxter, R. D.; Fujiwara, Y.; Seiple, I. B.; Su, S.; Blackmond, D. G.; Baran, P. S. Proc. Natl. Acad. Sci. USA 2011, 108, 14411.
4. Wei-Yuan, H.; Yuan, X. Chin. J. Chem. 1990, 8, 362.
5. Fujiwara, Y.; Dixon, J. A.; O'Hara, F.; Funder, E. D.; Dixon, D. D.; Rodriguez, R. A.; Baxter, R. D.; Herle, B.; Sach, N.; Collins, M. R.; Ishihara, Y.; Baran, P. S. Nature 2012, 492, 95.
6. Zhang, C. Adv. Synth. Cat. 2014, 356, 2895.
7. Nagib, D. A.; MacMillan, D. W. Nature 2011, 480, 224.
8. Greiner, J.; Milius, A.; Riess, J. G. J. Fluorine Chem. 1992, 56, 285.
9. Takeyama, Y.; Ichinose, Y.; Oshima, K.; Utimoto, K. Tetrahedron Lett. 1989, 30, 3159.
10. Bravo, A.; Bjørsvik, H.-R.; Fontana, F.; Liguori, L.; Mele, A.; Minisci, F. J. Org. Chem. 1997, 62, 7128.
11. Chen, Q.-Y.; Qiu, Z.-M.; Yang, Z.-Y. J. Fluorine Chem. 1987, 36, 149.
12. Beier, P.; O’Hagan, D.; Pearson, C.; Petty, M. C.; Slawin, A. M. Z. J. Fluorine Chem. 2005, 126, 671.
13. Zhang, C. P.; Chen, Q. Y.; Guo, Y.; Xiao, J. C.; Gu, Y. C. Chem. Soc. Rev. 2012, 41, 4536.
14. Huang, W.-Y.; Zhang, H.-Z. J. Fluorine Chem. 1990, 50, 133.
15. Habib, M. H.; Mallouk, T. E. J. Fluorine Chem. 1991, 53, 53.
16. Qiu, Z.-M.; Burton, D. J. J. Org. Chem. 1995, 60, 3465.
17. Mizuta, S.; Verhoog, S.; Engle, K. M.; Khotavivattana, T.; O'Duill, M.; Wheelhouse, K.; Rassias, G.; Medebielle, M.; Gouverneur, V. J. Am. Chem. Soc. 2013, 135, 2505.
18. Iqbal, N.; Jung, J.; Park, S.; Cho, E. J. Angew. Chem., Int. Ed. Engl. 2014, 53, 539.
19. Wozniak, L.; Murphy, J. J.; Melchiorre, P. J. Am. Chem. Soc. 2015, 137, 5678.
20. Wang, Y.; Wang, J.; Li, G. X.; He, G.; Chen, G. Org. Lett. 2017, 19, 1442.
21. Chernykh, Y.; Hlat-Glembová, K.; Klepetářová, B.; Beier, P. Eur. J. Org. Chem. 2011, 2011, 4528.
22. Beier, P.; Chernykh, Y.; Opekar, S.; Klepetářová, B. Synlett 2012, 23, 1187.
23. Chernykh, Y.; Beier, P. J. Fluorine Chem. 2013, 156, 307.
24. Chernykh, Y.; Jurásek, B.; Beier, P. J. Fluorine Chem. 2015, 171, 162.
25. Václavík, J.; Chernykh, Y.; Jurásek, B.; Beier, P. J. Fluorine Chem. 2015, 169, 24.
26. Li, L.; Ni, C.; Xie, Q.; Hu, M.; Wang, F.; Hu, J. Angew. Chem., Int. Ed. Engl. 2017, 56, 9971.
27. Yoshioka, E.; Kohtani, S.; Jichu, T.; Fukazawa, T.; Nagai, T.; Kawashima, A.; Takemoto, Y.; Miyabe, H. J. Org. Chem. 2016, 81, 7217.
28. Tiwari, D. P.; Dabral, S.; Wen, J.; Wiesenthal, J.; Terhorst, S.; Bolm, C. Org. Lett. 2017, 19, 4295.

Recommended for publication by Prof. Sergey Igumnov

Fluorine Notes, 2017, 115, 3-4
