Fluorine Notes, 2001, 15, 1-2

INTERNAL PERFLUOROOLEFINS IN A SYNTHESIS OF FLUOROORGANIC COMPOUNDS

G.G. FURIN

Institute of Organic Chemistry, 630090, Novosibirsk, Russia

ABSTRACT

Experimental data in the last decade on the synthesis of fluoroorganic compounds by the reaction of internal perfluoroolefins with nucleophilic reagents and a direct fluorination with elementary fluorine or electrochemical fluorination of the most important classes of organic compounds have been generalized and synthesized. This overview covers the principles governing the orientation and reactivity of fluorinated alkenes towards nucleophiles, fluoride ion as a nucleophile and reactions with nitrogen-, oxygen- and sulfur-centred nucleophiles. It has been demonstrated that the reaction of internal perfluoroolefins with N-nucleophilic reagents issues in the production of terminal perfluoroolefins whose interaction leads to the formation of enamines. Factors which affect the stability and reactivity of these compounds are discussed as examples of their application for the preparation of partially fluorinated organic compounds containing N-, O-, P- and S-atoms. This treatment summarized new experimental data, as well as their theoretical description, on the use of C-nucleophiles and C-carbcations from internal perfluoroolefins in the synthesis of fluoroorganic compounds. Examples of application of the perfluorinated carbcations to the synthesis of perfluorinated olefins, cyclic systems and oxygen-containing heterocyclic compounds are considered. The mechanisms of these transformations are discussed. A new approach to the generation of the stable perfluorinated alkylradicals from internal perfluoroolefins is discussed and experimental data are given on its reaction with the varies substances. The overview discusses the modern methods for the fluorination of elementary fluorine internal perfluoroolefins and their derivatives. The problems related to the production of high quality perfluorinated organic materials are analyzed. We have also set out the trends in the development of methods and technology for obtaining fluoroorganic compounds. Instances of the practical application of various perfluorinated substances in industry and medicine are given, rational techniques for producing them are suggested and trends in the development of this technology are considered.


CONTENTS

1. Introduction

2. Synthesis of partially fluorinated organic compounds using the reaction of internal perfluoroolefins with nucleophilic reagents.

2.1. The interaction of internal perfluoroolefins with O-nucleophilic reagents in the synthesis of fluoroorganic materials and intermediate products.

2.2. The reaction of S-nucleophiles with internal perfluoroolefins.

2.3. The specific interaction of N-nucleophilic reagents with the internal perfluoroolefins containing fluorine atoms on a carbon-carcon double bond.

2.4. Fluoride ion as a catalyst in generating C-nucleophile from perfluoroolefins and its interaction with electrophiles.

2.5. Izomerization of internal perfluoroolefines.

3. Synthesis of perfluorinated compounds internal perfluoro-olefins and elementary fluorine.

3.1. New approach to generate superstable radicals and their reactions with internal    perfluoroolefins and elementary fluorine.

3.2. Other methods to generate stable radicals and problems stability and reactivity perfluoroalkyl radicals.

4. Conclusion

References.


2.5. Isomerization of internal perfluoroolefins.

The isomerization of terminal perfluoroolefins to internal ones takes place under the influence of fluoride-ion [183,184].

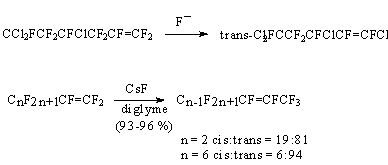

For example, the rapid isomerization of perfluoro-1-pentene to thermodynamically more stable isomer occurs in the presence of cesium fluoride [185].


The reactions of allylic displacement occur readily and with a stereo-chemistry steric control [186].


The last product reacts with formation, as a rule, a mixture of isomeric internal perfluoroolefins. For example, the isomerizations of tetrafluoroethylene tetramer under influence of fluoride-ion proceed with the isomers (52) and (53) formation [187].


The nucleophilic reagents react with internal perfluoroolefins and the elimination of fluoride-ion take place. The result of this process is the formation of others isomers. If the rate of reaction with a nucleophile for such isomers is higher then for initial olefin, the result of reaction is the complex mixture. It should be taken into account at realization of these processes.

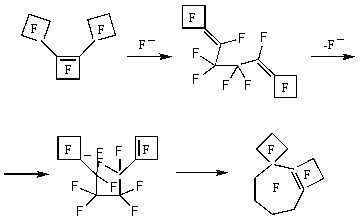

Both type of isomerization are possible at the action of fluoride-ion on ramified internal perfluoroolefins (with double bond participation) and rearrangement with migration of CF3-. The authors of [17] found the intermediate trifluoromethyl anion in the reaction with perfluoropyrimidine. The new perfluoroolefins with unexpected structure may be produced [12].


The generation of carbanions under the influence of fluoride-anion can to give the transformation of initial structure. So, at the reaction of CsF with trimer of a perfluorocyclobutene a complex cycle is formed [18,19]:


Isomerization also can be carried out by transformation of C-carbcation, which generate, for example, by the action of SbF5on perfluoroolefin. Thus, terminal perfluoroolefins (perfluoropent-1-ene, perfluoro-hex-1-ene etc.) at the action of SbF5(catalytic amounts) smoothly isomerizate to corresponding trans-perfluoroolefins with double bond in position 2 (yield 80-85 %) [16, 188-190].

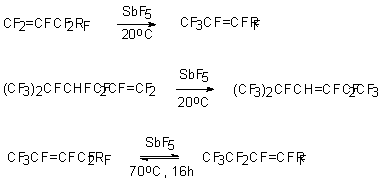

Other catalytic agents (for example AlClxFy) are effective in these processes too [191].


The rearrangement of erfluoroisopropylethylene to tris(trifluoromethyl)-ethylene at heating up to 30-40 oC was observed [188-190]. If molecule had two terminal double bond, they isomerizate simultaneously with formation of 80-90 % E, E-isomers and 10-20 % E, Z-isomer [192,193].


When boiling perfluorohex-2-ene (perfluorohept-2-ene) reacts with SbF5 and equilibrium mixture containing 75-80 % of olefin (54) and 20-25 % of (55) is observed [194].

55

54

The shift of double bond is also observed in the reactions of some perfluorinatered dienes with SbF5 [195]. So, perfluoro-2-methylpent-2,4-diene in the reaction with SbF5at temperature 0-5 oC isomerizate to perfluoro-2-methylpent-1,3-diene. Last quantitatively isomerizate to tris(trifluoromethyl)fluoroallene at 20-25 oC

.


German with co-workers was shown [191-196], that the realization of an intramolecular cyclization with formation of perfluoroalkylcyclopentene is the important moment.
                                                                    3            :          7

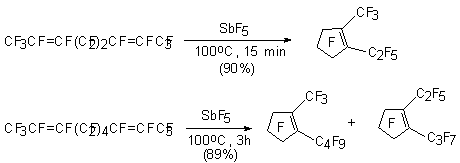

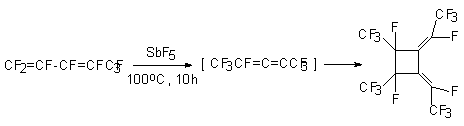

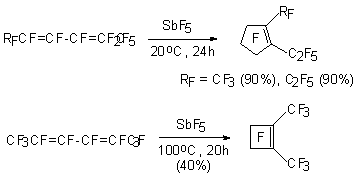

Perfluorinated dienes at presence of SbF5 also yield the derivative of cyclopentene in soft conditions. However, if diene contains only CF3 of group, the cyclic product is not formed at room temperature, whereas perfluoro-1,2-dimethylcyclobutene was produced at temperature 100oC [196].

3. Synthesis of perfluorinated compounds from internal perfluoroolefins and elementary fluorine.

The significant part of works is devoted to processes of double bond fluorination. This way is vary important for producing of perfluorinated paraffins and freons [197-203]. The expected highly exothermic nature of the reaction of F2with olefins discouraged many experimental workers. Reactions of organic compounds with fluorine gas are dangerous and require special equipment. Often the yields of the desired product in these reactions are poor and low selectivity is observed because the fluorine gas has high reactivity.

Merritt [204-207] showed that it is not impossible to add the fluorine to certain simple olefins. His technique was, however, quite unusual and rather inconvenient. It seems that the major obstacle for realization of this reaction is the fact that the F-F bond is weak and can be readily separated to very reactive fluorine radicals. A number of indirect methods have been developed for producing of vicinal difluoro compounds to circumvent the direct fluorination. Some success was achieved with adding F2to perfluoroalkenes. The result was the formation of the corresponding perfluoroalkanes. So, tetrafluoroethylene reacts with element fluorine both in gas-phase and in liquid-phase (Freon 114) conditions at 80oC, and gives the hexafluoroethane with yield 87.8 % [208-210]. Taking into account, that hexafluoroethane use as quality propellants, working bodies for refrigerating machines and for dry etching of semiconductors, this method is perspective for industrial scale [211]. Similarly, perfluoro-2-methylpent-2-ene and perfluoro-4-methylpent-2-ene or their mixture react with elemental fluorine both in liquid phase at -120oC - -30oC and without solvent resulting the perfluoro-2-methyl-pentane with a quantitative yield [212]. Author of [213] have developed effective techniques for a production of polyfluorinated compound from polyfluoroolefins and fluorine gas in liquid phase. According to this method, 100 % fluorine gas react in mild condition (reaction temperature: -64 - +58oC; reaction pressure: atmospheric) without explosion or combustion of the initial substances.

Preparation of the branched perfluoroalkanes was carried out with mixture of 20 % F2and 80% N2[214] or 100 % F2[215] in liquid-phase absorption column system (Table 3).

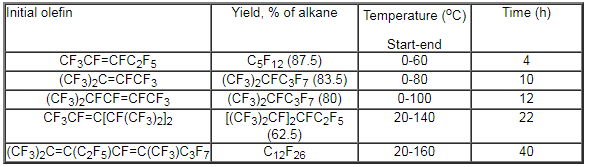

Table 3.Fluorination of perfluoroolefins (slight excess of F2)[215].



Perfluoro-2-methylpentane can be used as a hydraulic liquid, dielectric and heat-carrier. This method has appeared convenient for reception of others perfluoroparaffins from various perfluoroolefins. So, trimer of a hexafluoropropylene react with elemental fluorine and perfluoro-3-isopropyl-4-methylpentane is produced with 86 % yield [216]. Fluorination by elemental fluorine at -40 - -120oC in inert solvents (CFCl3, CF2Cl2) also gives perfluorinatered products with high yields [79,217-220]. Perfluoro-3-isopropyl-2-methylpentane was produced at 70oC with quantitative yield [221].


Others perfluoroolefins and their derivative also give perfluorinatered products, for example, such perfluoroolefins as :

(iso-C3F7)2C=CFCF3,

(CF3)2C=C(C2F5)CF(CF3)2,

CF3CF=C(CF3)C(CF3)2(C2F5)2,

(CF3)2C=C[CF(CF3)2]CF(CF3)OCH2C3F7-n,

(CF3)2CFC(C2F5)=CFCF3,

perfluoro-2,2-propanebicyclo [5.2.0.]non-1(7)-ene [212,221],

(CF3)2CFCF(C2F5)C(CF3)=CF2,

CF(CF3)2C[C(CF3)3]=CF2[218].

Thus, fluorine react at -78oC in alcohol only with multiple bond and vicinal products are formed, while the epoxy compounds is observed at 0oC in acetonitrile. The CF3.readily detach and new perfluoroolefins is formed. They can, firstly, yield radicals themselves and, secondly, lead further to perfluoroparaffins with altered carbon skeleton. These results have led to processes of destruction and isomerization of perfluoroparaffins.

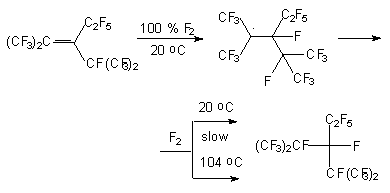

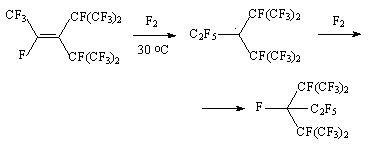

The reaction of perfluoro-3-ethyl-2,4-dimethylpent-2-ene and perfluoro-3-isopropyl-4-methyl-pent-2-ene with fluorine in Fomblin Y06/6 in the presence of UV light was studying by the authors of [220]. Perfluoro-2,3,3,4-tetramethylpentane and perfluoro-2,3,4-trimethyl-pentane were the main products of reaction together with small amounts of other known compounds 60-62. Therefore perfluoro-2,3,3,4-tetramethylpentane has a potential as a new initiator for vinylic polymerization. But photochemical isomerization of perfluoropent-2-ene isomer yield two terminal olefins: perfluoro-3-ethyl-2,4-dimethyl-pent-1-ene 63 and perfluoro-2-iso-propyl-3,3-dimethylbut-1-ene 64, which are not the unsaturated counterparts of photo induced fluorination of main products. Fluorination of 63 and 64 gives, respectively, 60 and perfluoro-2,2,3,4-tetramethylpentane 65, together with other decomposition products.


The terminal olefins (CF3)2CFCF(C2F5)C(CF3)=CF2and (CF3)2CFC[C(CF3)3]]=CF2were fluorinated and highly branched perfluoroalkanes was obtained. They provide the perfluoroalkyl radicals, which are the initiators for monomers polymerization [218]. Other perfluoroolefins: (CF3)2CFC(C2F5)=C(CF3)2and [(CF3)2CF]2C=CFCF3were fluorinated under UV radiation with producing (CF3)2CCF(CF3)CF(CF3)2, (CF3)2CFC(CF3)2CF2CF2CF3and (CF3)2CFCF2CF2CF3(yields 26, 50, 24 %, respectively).

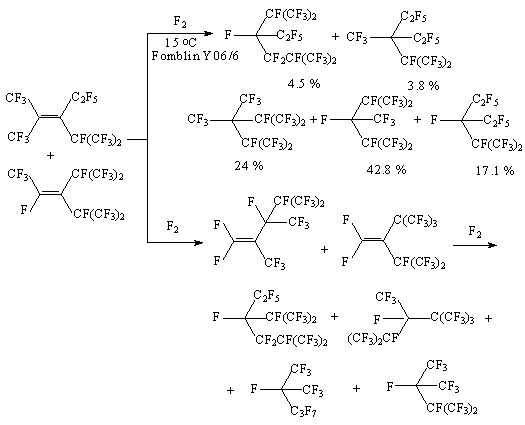

Direct gas-phase fluorination of hexafluoropropene trimers, perfluoro-3-ethyl-2,4-dimethyl-pent-2-ene and perfluoro-3-isopropyl-4-methylpent-2-ene, at 130 -150oC in the presence of copper and nickel yields the first stable perfluororadical, which was found by Scherer [222].

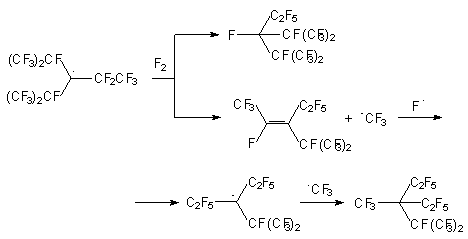

So the stable radical can undergo n* transition of the unpaired electron with forming a very unstable species which can rearrange by two ways:

  1. The main pathway is the -elimination of CF3.radical from the CF3CF2group with terminal alkene formation (perfluoro-2-isopropyl-3-methylbut-1-ene), which react with F2and intermediate perfluoro-2,3,4-trimethylpentan-3-yl is formed. The last one can react with F.radical or CF3.radical with formation of perfluoro-2,3,4-trimethylpentane and perfluoro-2,3,3,4-tetramethylpentane;
  2. thebeta.gif (844 bytes)-elimination of CF3.radical with formation of intermediate perfluoro-3-isopropylpentan-3-yl; last one can react with F.radical or CF3.radical with formation of perfluoro-2-methyl-3-ethylpentane and perfluoro-2,3-dimethyl-3-ethylpentane.

Perfluoro-3-isopropyl-2-methylpent-3-ene was fluorinated and 98 % yield of perfluoro-3-isopropyl-2-methylpentane was obtained [201,223,224]. When the temperature of fluorination is higher than 170oC the process proceeds non-selectively with formation mainly the carbon and tetrafluoromethan. An obvious change in the products type is observed when using the special catalyst Ni/support: perfluoro-2-methyl-3-isopropylpentane as the main product at 130oC is obtained [224].


The basic idea is the localization of fluorination acts on the catalyst surface. In the direct gas-phase catalytic fluorination of incompletely fluorinated organic compounds the adsorbed excited intermediate adducts have the possibility to leave the excessive energy to the solid without destruction, resulting the increasing of the selectivity of fluorination. This idea is illustrated by the results of gas-phase direct fluorination of fluoroolefins (dimer and trimer of hexafluoropropylylene). New catalysts allow to obtain excellent results not only in laboratory, but also in industry.

The process of fluorination proceeds by the radical mechanism. The average lifetime of intermediate fluorocarbon radicals in various radical reactions in a liquid at room temperature is much more (102 - 103 h) than their hydrocarbon analogues.


The presence only one CF3-group results the formation of cyclobutane system [196]. Probably, the rearrangement of perfluoropent-1,3-diene to perfluoro-1,3-dimethyl-allene with further cyclodimerization is take place.



3.1. New approach to generate superstable radicals and their reactions with internal perfluoroolefins and elementary fluorine.

One of the key problems in the chemistry of free radicals is to ascertain the dependence of the reactivity of radicals on the delocalization of unpaired electron.

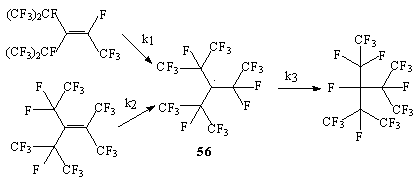

Scherer with co-workers [222,225-227] on an example of reactions of perfluoro-3-ethyl-2,4-dimethylpent-2-ene (T2) and perfluoro-3-isopropyl-4-methylpent-2-ene (T3) with fluorine received a superstable and persistent radical of perfluoro-3-ethyl-2,4-dimethyl-3-pentyl (56) that confirmed the well established radical mechanism of fluorine attack on perfluoroolefins. It is known that radical 56 is vary stable andcan be isolated and analyzed by the gas chromatography without decomposition. Radical 56 do not react with conc. HCl, conc. H2SO4, and oxidizing agents such as oxygen, chlorine, bromine and iodine. The stability of 56 arises not only from the inaccessibility of the radical center becouse of the sterical hindrance, but also from the electronic properties of perfluorosystem. This stable fluoroalkyl radical has large time of life in a solution at 20 oC [222]. The olefin T2 with fluorine atom at multiple bonds has the greater activity in comparison with T3. So, the olefin T2 reacts with a fluorine for 3 hours, whereas an olefin T3 only for 22-24 hours (Table 4) [228].

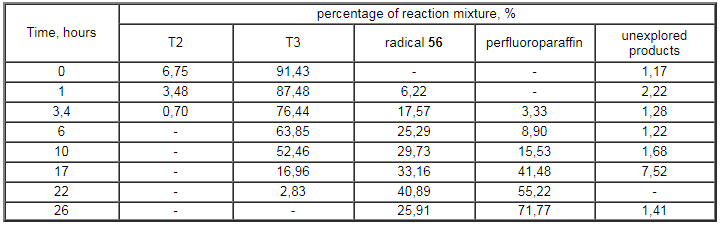

Table 4.Data of gas-chromatography analysis: direct fluorination of olefins (T2 and T3) mixture by elementary fluorine [228]



By these reasons the kinetic measurements of fluorine reaction with olefin T-2 is not possible [228].

The physical data of this radical [225].

b.p. 37-37.5 oC/35 Torr.

m.p. -28.2 (-28 oC)

Density d420 1.845

Parameter of refraction nD20 1.2872

This radical is stable at room temperature (period half-life 8 years) [222,225-227]. Radical 56 explain the unexpected formation of perfluoro-3-methyl-3-isopropyl-pentane at 104 oC by means of hypothesis that the mechanism involving elimination and re-adduction of CF3groups exist.


At room temperature radical 56 does not react with water, acids, alkalis, oxygen, chlorine, and bromine. It is necessary to note, that such stable radicals were received from various spatially complicated olefins. Lewis bases such as triethylamine and triphenylpnictogens (Ph3Pn, Pn = N, As, Sb, Bi) and some soft anions such as iodide or tetraphenyl borate reacted with radical 56 and the perfluoro-3-isopropyl-4-methylpent-2-ene was obtained quantitatively [229]. Even very weak Lewis bases (such as diethyl ether and diethylsulfide) also reacted with radical 56 and the perfluoro-3-isopropyl-4-methylpent-2-ene and additional perfluoro-3-ethyl-3H-2,4-di-methylpen-tane was produced. Hydrogen gas did not reacted with radical 56 without catalyst, but in the presence of Pd, adsorbed on charcoal, smoothly reacted with formation of perfluoro-3-isopropyl-4-methyl-pent-2-ene with quantitative yield (Table 5). Hydrides (LiAlH4, NaBH4, NaH, BH3(THF complex), Bu3SnH, Me2PhSiH) reacted with 56 with formation of perfluoro-3-isopropyl-4-methylpent-2-ene and perfluoro-3-ethyl-3H-2,4-dimethylpentane.

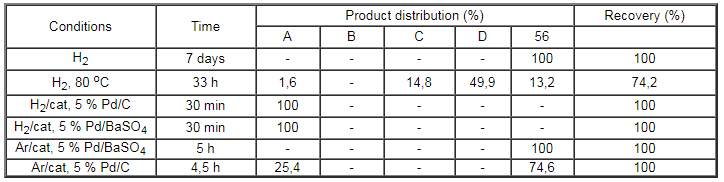

Table 5. Reaction of radical 56 with hydrogen (all unmarked bonds are fluorine) [229].ConditionsTimeProduct distribution (%)Recovery (%)ABCD56H27 days----100100H2, 80 oC33 h1,6-14,849,913,274,2H2/cat, 5 % Pd/C30 min100----100H2/cat, 5 % Pd/BaSO430 min100----100Ar/cat, 5 % Pd/BaSO45 h----100100Ar/cat, 5 % Pd/C4,5 h25,4---74,6100

These radicals can exist in a liquid at room temperature during long years.

The authors of [221,226-232] studied the reactions with formation of long-lived fluoroalkyl radical in a solution at 20 oC. Likely, the stabilization of an unpaired electron take place due to the formation of sterically screened radical centers in the process of alkanes or olefins fluorination. Hence, the perfluoroalkyl stable radicals are the particular type of stable radicals with new mechanism of stabilization. The presence of perfluoro groups as substituents enhance the stability of such radicals presumably due to the structure and properties of fluorine atom. These radicals may be used as initiators in polymerization of fluorocontaining monomers. The use of perfluoroalkyl radicals for decreasing of fluorocontaining polymers degradation from radiation will be interesting moment in fluorine chemistry. The use of the perfluoroalkyl radicals in biology as spin-tracer compounds allows to investigate their methabolism. It is interesting to consider the idea of using of perfluoroalkyl radicals as antirad.

It should be noted that stable radicals of this kind have been obtained from various space-hindered olefins [226,227,230-232]. Thus, perfluoroalkenes :

(CF3)2C=C(C2F5)CF(CF3)2,

(iso -C3F7)2C=CFCF3,

(CF3)2CFC(C2F5)=CFCF3,

CF3CF=C(C2F5)CF(CF3)2,

perfluoro-2,2-propanebicyclo-[5.2.0]-non-1(7)-ene, (CF3)2CFC(C2F5)=CFCF3 , when react with F2, form the corresponding long-lived perfluoroalkyl free radicals [212,221]. The interaction of fluorine with olefins :

(CF3)2CFCF=CFCF3, (CF3)2C=CFC2F5,

(CF3)2C=C(C2F5)2,

perfluoro-D4a (8) -octaline

and perfluoro-1-(1,1-dimethylbutyl)-cyclobutene-1 do not produce similar radicals.

Direct fluorination of perfluoro-tert-butylacetylene results the formation of vinyl radicals 57 (t1/2 1 h) [233], identified by ESR spectrum [234,235].


                                                                      57

This radical is stable when oxygen is absent.

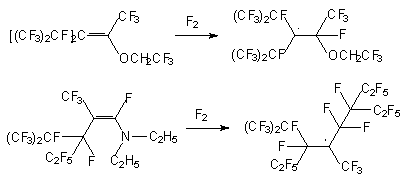

Authors of [221,236-238] studied the processes of fluorination with radical formation. Currently the researches of kinetic and mechanism of a number of radical processes have carried out. For these researches the conditions of long-life radical producing is determined. The authors of [232,238,239] consider the mechanism of formation and structure of long-life perfluorocarbon radicals in the reactions of photolysis, fluorination of the perfluorinatered unsaturated compounds, perfluoroaliphatic and fluorocontaining aromatic compounds, linear perfluoroalkanes and fluorocontaining of polymers [232,238,239].

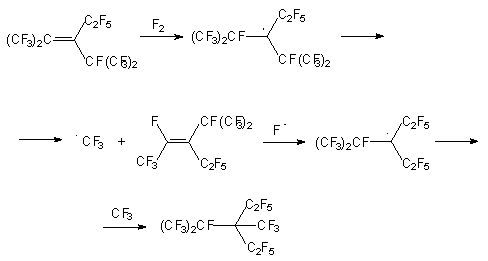

The elimination of radical CF3. results the new perfluoroolefins. Firstly, these perfluoroolefins can react with fluorine and give the radicals. Secondly, further can produce the perfluoroolefins with changed carbon skeleton. These works was a new stage in understanding of processes of decomposition and isomerization of perfluoroolefins in fluorination processes and allow carrying out a useful synthesis of some perfluoroparaffins.

The interest of researchers to such radicals constantly increases. The stabilization of free valence in such radicals usually is caused by a delocalization of electronic density or on p-system of an aromatic ring, or on orbitals of heteroatoms (oxygen, nitrogen etc.) [240,241]. The presence of spatial shielding from volumetric groups promotes this stabilization. The new radical practically is not capable to mutual recombination in solutions at room temperature [241-243]. The analysis of structure of radical 56 shows that the inability of recombination defines only by intramolecular isolation of free valence.

.

In all cases the spatial isolation of radical center during formation of intermediate perfluorocarbon radicals interferes with their recombination and lowers their reactionary ability in the subsequent stage of a recombination with atom of fluorine [230,244,245].


This radical thermally is more stable in comparison with {[(CF3) 2CF] 2C-C2F5}. When heating radical produce CF3.radical, which react with trimer of a hexafluoropropylene CF3CF=C[CF (CF3)2]2with formation of [(CF3)2CF]3C..

The long-life radicals also are formed during fluorination of hexafluoropropylene trimer or its derivatives, which contain phenoxy- [230], diethylamino- and ,, -trifluoroethoxy group [244].


Steady fluorocarbon radicals can be applied as spin labels and for reception of the 2D-images in ESR tomography [244].

It was established, that the greatest influence on a speed of radicals dimerization render the steric shielding of radical center and the speed of radicals rotary diffusion [246].

The interesting opportunities were opened in the reaction of fluorine with perfluoroolefins. So, at -78 oC in alcohol fluorine attach to double bond with formation of remote vicinal products, whereas at 0 oC in a water-acetonitrile mixture fluorine react with formation of epoxy-compounds. The elimination of CF3. radical results the new perfluoroolefins, which:

  1. Can produce radicals.
  2. To react further forming the perfluoroparaffins with altered carbon skeleton.

These works gave a new impulse to understanding of processes of perfluoroolefins decomposition and isomerization during fluorination and allowed to carry out a purposeful synthesis of some perfluoroparaffins [217].


These reactions easily carry out when the processes of a fluorination accompany by ultraviolet light.

Others fluorinating reagents can be used instead of a fluorine for long-life radicals generation. For example, in reaction CF3OF with perfluoro-2-methyl-2-pentene and perfluoro-4-methylpent-2-ene the stable radicals A-D are formed as by-products (realization of this process in a cell of a ESR-spectrometer at 330 K and 320 K allow to receive precise signals of radicals A and B with super thin splitting of fluorine atoms whereas the identification of radicals C and D was not possible, probably, from their low stability) [247]. It should be note, that this is the first example of fixing of intermediate particles in reactions of olefins with CF3OF.

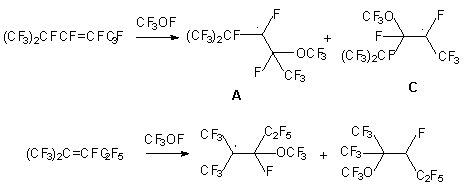

The similar pictures takes place in the reaction of CF3OF and X(CF2O) n(CF2CF2O) mCF2OF with others perfluoroolefins [248]. Thus the method of a ESR in these reactions registered a tertiary and secondary radicals.

The fact, that trifluoromethyl radical can react with double bond of perfluoroolefin with formation of stable fluoroalkyl radical [221,230] allowed to assume that another stable radicals was formed with using others even "hot" radicals.


The dynamics of the formation of paramagnetic sites were monitored under identical experimental conditions when mixture of hexafluoropropylene trimer with F2 was defrosted in ampoule, which was placed into the resonator of the ESR radiospectrometer. The formation of free radicals 56 occurs at 115 K. The poorly resolved doublet of ESR spectrum was appeared. This doublet can be assigned to a radical formed from addition reaction of fluorine atom with double bond of hexafluoropropylene trimer [227]. Free radicals of this type do not recombine even in the liquid state at 293 K, and they have an infinite lifetime: their concentration remains practically constant up to 200 K.

3.2. Other methods of stable radicals generation and problems of stability and reactivity of perfluoroalkyl radicals.

Really, the reactions of ramified perfluoroolefins (dimers and trimer of a hexafluoropropylene, perfluoro-4,4-dimethylpent-2-ene) with peroxydisulphurildifluorides resulted the stable alpha.gif (842 bytes)-fluoro-sulphonyloxy-tetrafluoroethylperfluoro-di(isopropyl)methyl radical (58) [249-254], which was isolated with yield more than 80 % [255,256]. Because of the ramified structure the radical 58 has high stability [235]. Radical 58 can produce the perfluoroisoninyl radical as a product of FSO3 group substitution under the action of either SbF5 [248,254] or CsF in acetonitrile [255]. Radical 58 is the first example of new type of fluoroalkylating agents. Their alkylation properties are determined by the stabilizing influence of unpaired electron on the adjacent carbcation center.


It was shown that perfluoro-4-methyl-2-pentene reacted with peroxydisulfuryldifluoride regiospecifically with formation of radical 59, which was stable in the oxygen absence [257,258].


When peroxidisulfuryldifluoride (FSO3) 2 reacts with perfluoro-4-methylpent-2-ene, the radical attacks perfluoro-4-methylpent-2-ene in position 2 with formation of a-fluorosulphatotetrafluoroethylperfluoroiso-propylmethyl radical. Last ones is capable to addition either a secondradical FSO3 or halogen atoms. But it is not able to undergo the dimerization [259].

In the case of more branched perfluoro-4-methyl-3-isopropylpentene-2 the addition of peroxydi-sulfyryldifluoride led to a stable radical A, which was isolated as individual material. The use of more violent conditions results the formation of bis-fluoro-sulfate B [257].

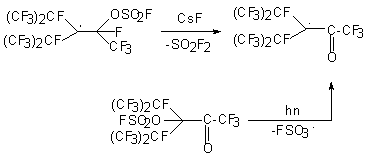

The presence of functional FSO3 group carries out the chemical transformations of radical A with retention of radical center.

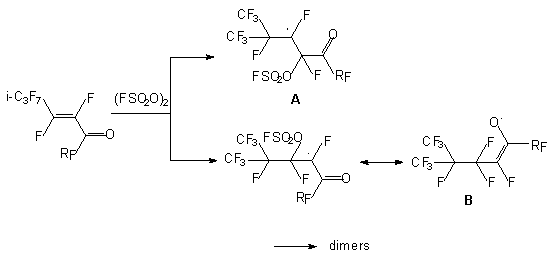

The reactions of unsaturated carbonyl compounds iso-C3F7CF=CORF (RF = F, C2F5,

i-C3F7) with (FSO3)2 yield the considerable amounts (30-35 %) of fluorosulphatodimers [260].


Obviously, dimerization is associated with changing of the radical attack site, which result the thermodynamically more stable radical B. Remains can react with formation of the less hindered, and therefore, more reactive O-centered radical. This fact probably determines the dimerization of unsaturated carbonyl compounds.

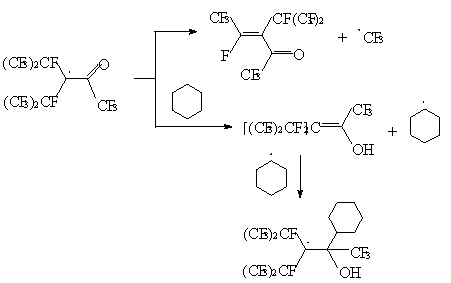

The kinetic of hydrogen absorption from hydrocarbons by air-stable perfluoroacetyldi-iso-propylmethyl radical was studied by the method of ESR (Table 6) [261].

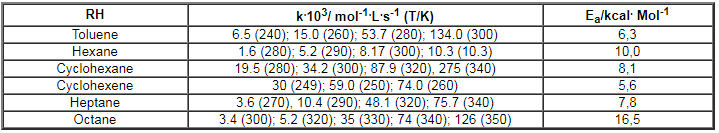

Table 6. The kinetic and thermodynamic data of hydrogen atom detachment from paraffins by -ketoradical [261].



It is interesting, that the radical center does not complicate the reactions ways with other functional groups in all molecules. So, CsF reacts with formation of ketoradical with fluorosulphuryl elimination. If this reaction carries out in acetonitrile, the stable radical is formed as replacement of OSO2F-group by fluorine [249-252].

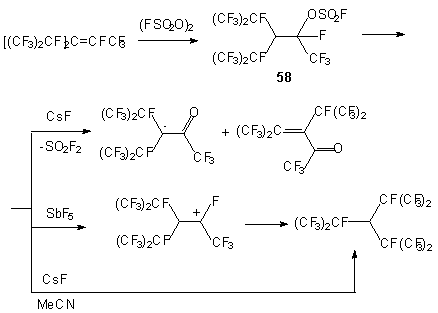

The radical (58) react with SbF5 at 45-60 oC without of solvents and a product of replacement of FSO3group by fluorine atom (that is perfluorodi-iso-propylmethyl radical (60)) is obtained [259,261].
58 60

The interaction of intermediate formed from methylvinyl-dimethoxysilane or methylvinyl-diethoxysilane radicals at UV-irradiation and -10 --20 oC with perfluoroolefins having ramified alkyl groups results the formation of stable radicals [259].


R = [CH2=CHSi(Me)(OCH2X)(OCH2X)]. (X = Me, Et)

The radical reaction of vinylsilane with ramified perfluoroolefins can be the ways of introduction of fluorinated substituents.

The stable radicals are received from fluorinated imidoylchlorides too [263].


These radicals are stable at room temperature. Reactions proceed as photolysis in isopropyl alcohol with Et3SiH [264].


The ultraviolet influence on solutions of hydrosilanes in perfluoroolefins results the formation of steady adduct 61(time of life 5-10 h) [265]. When di-tert-butyl-peroxyde was added the signals intensity increased in 10-30 times. The reactionary ability of intermediates obtained from free radical 61 determines by steric shielding of the radical centers.


RF = CF(CF3)2, C(CF3)2CF(CF3)2

Y = SiCl3, SiMeCl2, SiMe3, SiEt3

RF= C(CF3)3

Y = SiCl3, SiMeCl2, SiMe3, SiEt3

RF = CF(CF3)2, C(CF3)3

Y = HP(O)(OR) (R = Me, Et, Pr)

The similar results are received for irradiation of dialkylphosphites too.

Allylic radical of a similar structure 62 is formed when initial olefin reacts with silicon-containing radical.

.

                                                                                     62

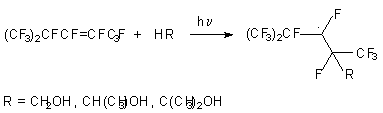

However, photolysis of this olefin without the donors of hydrogen also results the formation of allylic radical with similar structure 63.


The authors of this work have established, that the lifetime of such allylic radicals is approximately 1 hour. This fact disagrees with the data of such type of radicals described in [266].

The irradiation of perfluoroolefins (even not very spatially complicated) in alcoholic solutions results the formation of steady radicals 64 [267]. Thus, the addition of peroxyde tert-butyl (5 % volumetric) increases the signal strength of ESR in 10-40 times..


The perfluoroalkyl radicals (65 and 66) with cyclic substituents were received by photolysis of corresponding bromides at presence of Hg (C2B10H11)2 [268]. They were stable up to 220 oC.
65 66

Perfluorinated alkenyl radical 67 was received by the reaction of terminal perfluoroolefin and methyl radical which was formed from photolysis of di-tert-butyl-peroxyde. Radical 67 contain the double bond in position 4 or 5 to the radical center and further turn into the rather stable radical 68 [269,270].

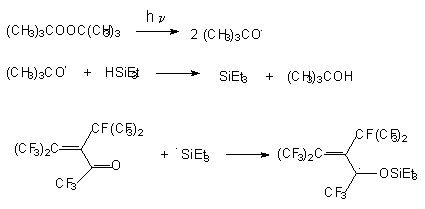

In the reaction of perfluoro-2-methylpent-2-ene with di-tert-butyl-peroxyde at 140 oC or at 20 oC (UV light) (CF3)2CMeCHFC2F5 and (CF3)2CHCFMeC2F5 (ratio 1:4) was obtained (30 % yield) [271]. The intermediate radical (CF3)2CMeCFC2F5 was identified by ESR spectrum.

These radicals are the models for study of a structure and reactionary ability of cyclic tertiary perfluorinated radicals. It is established, that the view of received kinetic curves (range of temperatures +20 - 120 oC), and dependence of signal of stationary amplitude from intensity of light support the idea of radicals dimerization with following kinetic parameters: k20=102 L/mols, Eact= 3.4 kkal/mols. It is assumed that the reduction of dimerization speed constant of these radicals over against the acyclic fluorinated radicals [246, 271] was provided not only by steric factors, but also by the stereo chemical rigidity of radical canter.

The stable perfluoroalkyl radicals were received also by other methods, which include interaction of perfluoroolefins with various radicals. So, at electrochemical fluorinations of perfluoroolefins and their alkoxy- and alkylamino-derivatives the radicals 69 - 71 with high stability are received [272].


Radicals 69-71 was identified by ESR spectrums.

During the electrochemical fluorination of steric ramified polyfluoropyrrolizidine the stable radical (with concentration not less 5 % and time live > 1 month) was recognized in products of reaction by the method of ESR [273, 274]. The radicals of this type rather stable and can be received when perfluoroolefins reacted with either element fluorine, or other radicals, for example, CH3., [P(O)(OMe)2]..

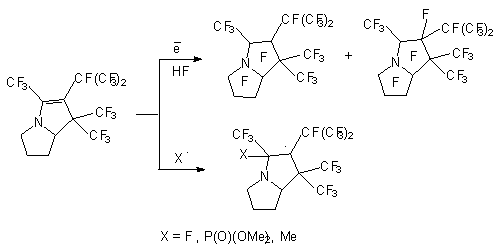

Radicals were fixed during electrochemical fluorination of following compounds:

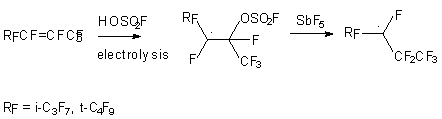

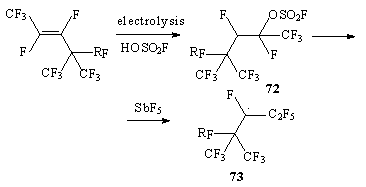

Electrolysis of perfluoroolefins in environment of fluorosulphonic acid produce the stable fluorosulphonyl-oxyperfluoroalkyl radical [249-252, 275].

The characteristic features of this reaction are confirmed by the formation of the perfluoroalkyl radicals from the beta.gif (844 bytes)-fluorosulfatoperfluoroalkyl radicals under the action of SbF5 [249].


SbF5 replaces FSO3 group on atom of fluorine, giving a new stable radical 73 (anode - glass - carbon SU 2000, cathode - titanium, 1=0.6 A, t = 0.5 h) (current yield 75 %)


RF = F, CF3 [267], i-C3F7, t-C4F9 [245]

Due to the essential differences in boiling points of radicals, received by electrochemical fluorosulphatation of hexafluoropropylene trimer and the initial olefin as well as a product of the further transformation, radical was isolated.

The method of fluoroolefins fluorosulphatation is attractive becouse allows to receive the fluoroalkyl radicals with functional FSO3 group which permit their further chemical transformations. So, under the action of CsF this radical was transformed to the stable perfluoroacetyldi-iso-propylmethyl radical (last also was recognize during photolysis of ketofluorosulphate).


The electrochemical fluorination of hexafluoropropylene trimer at presence of NaF produce the stable perfluoro-3-ethyl-2,4-dimethyl-3-pentenyl radical [276].

The method of stable perfluoroalkylic radicals producing by radiolysis of perfluoroparaffins, having tertiary atom of carbon, is most advanced [228,232,239,277-279]. Method is simple and universal. The formation of radicals proceeds with fluorine atom elimination from a cycle [269]. It is possible to use ultraviolet irradiation of perfluorinatered compounds. However photolysis is less effective method then radiolysis. So, during the photolysis of hexafluoropropylene the concentration of radicals was three times less than during radiolysis [232].



Conclusion.

The above-mentioned material allows to ascertain the growing interest of the researchers to the new approaches of introduction of perfluorinatered fragments to organic molecules and transformations of the simple substituents to complex functional groups. The significant successes achieved in development of methods, which help to carry out the introduction of fluorocontaining fragments to organic molecules. It is necessary to note that was studied the reactions of wide using internal perfluoroolefins with fluoride-ion. Such processes have advantages and can give the real opportunities of application in industrial technologies. It is expected that realization of this methodology help to open the new reactions and transformations resulting the synthesis of fluorocontaining compounds. Taking into account all above-mentioned, in the review we basically try to show the new approaches, opportunities of new reagents and new ideas, which are realized in the organic synthesis. Besides we aspired to show the tendencies and basic directions of researches in the field of a synthesis of perfluorocontaining organic substances containing a various molecular skeleton and functional groups. Certainly questions concerning the realization of these ideas and processes are attractive not only for the chemists working in field of fluoroorganic compounds, but also for experts of organic synthesis. Thus, perfluoroorganic compound in number moments are convenient, and moreover sometimes they are the unique models for decision of a number fundamental questions of theoretical organic chemistry.



References

[1] Sheppard Y, Sharts K. Organic chemistry of a fluorine. M.: the world. 1972. With. 480.

[2] Organofluorine Chemistry, Principles and Commercial Applications./ Eds. Banks R.E., Smart B.E., Tatlow J.C.. Plenum Press. New York. 1994. P. 287.

[3] Bergstrom D.E., Swartling D.J.. in Fluorine-Containing Molecules. Structure, Reactivity, Synthesis and Applications. Eds. Liebman J.F., Greenberg A., Dolbier W.R.; VCH: New York. 1988. pp. 259-308;

[4] Organofluorine compounds in medicinal chemistry and biomedical applications./Eds. Filler R., Kobayashi Y., Yagupolskii K.M., Elsevier Science Publishers B.V., Amsterdam, Netherlands. 1993. 386P.

[5] Bergstrom DE, Lin X, Wang G, Rotstein D, Beal ., Norrix K, Ruth J (1992) Synlett., 179.

[6] Welch J.T., Eswarakrishnan S.. Fluorine in bioorganic Chemistry. John and Sons: New York, 1991.

[7] Peters D., Hornfelds A.-B., Gronowitz S., Johansson N.G. Nucleosides Nucleotides. 1992, 11, 1151.

[8] Fluorine compounds. Modern Technology and Application. (Ed. Ishikawa N.), 1984, 591 P.

[9] Burger K., Wucherpfennig U., Brunner E.. Adv. Heterocycl. Chem.1994, 60, 1.

[10] Furin GG (1996) Chemistry Rev., 20: 1.

[11] Furin GG (1997) Zh. Org. Khim., 33:1287.

[12] Farnham WB (1996) Chem. Rev., 96:1633.

[13] Furin GG (1992) Sov. Sci. Rev. B. Chem., 17:1.

[14] Chambers R.D., Vaughan J.F.S. Nucleophilic reactions of fluorinated alkenes. In: Topics in Current Chemistry. Chambers R.D. (Ed.), Springer-Verlag: Berlin, Heidelberg, New York. 1997. Vol. 192. P. 1-38.

[15] Furin GG (1994) Zh. Org. Khim., 30:1704.

[16] Krespan CG, Petrov VA (1996) Chem. Rev., 96: 3269.

[17] Chambers RD, Cheburkov YA, Tanabe T, Vaughan JFS (1995) J. Fluorine Chem., 74:227.

[18] Chambers RD, Kirk JR, Taylor G, Powell RL (1982) J. Chem. Soc., Perkin Trans 1., 673.

[19] Chambers R.D., Bryce M.R. Fluoro-carbanions. In: Buncel E., Durst T. (Eds). Comprehensive carbanion chemistry. Part C, 1987. Vol. 6. P. 271. Elsevier: Amsterdam.

[20] Snegirev VF, Makarov KN (1986) Izv. Akad. Nauk SSSR. Ser. Khim.,106.

[21] Pat. 62-289539 (1987) Japan ; (1988) C.A.108:205250b.

[22] Kamlet MJ, Adolph HG (1968) J. Org. Chem., 33:3073.

[23] Sun KK, Tamborski C, Eapen KC (1981) J. Fluorine Chem., 17:457.

[24] Gubanov VA, Tumanova AV (1965) et al. Zh. Org. Khim., 35: 389.

[25] Chaabcum MM, Baklonti A (1990) J. Fluorine Chem., 47:155.

[26] Boutevin B, Youssef B (1989) J. Fluorine Chem., 44:395.

[27] Moldavsky DD, Furin GG (1995) Zh. Prikl. Khim., 68:2018.

[28] Hu CM, Xu Z (1989) Youji Huaxue. 1989, 9:26; (1989) C.A. 111:56998j.

[29] Chambers RD, Salisbury M (2000) J. Fluorine Chem. 104:239.

[30] Moldavsky DD, Bispen TA, Furin GG, Zhuzhgov EL (1996) Zh. Prikl. Khim., 69:636.

[31] Sievert AC, Tong WR, Nappa MJ (1991) J. Fluorine Chem., 53:397.

[32] Briscoe MW, Chambers RD, Mullins SJ, Nakamura T, Vaughan JFS (1994) J. Chem. Soc., Perkin Trans I., 3119.

[33] Kurikin MA, German LS (1981) Izv. Akad. Nauk SSSR. Ser. Khim., 2647.

[34] Sereda SV, Antipin MY, Gervitz LL, Makarov KN, Struchkov YT (1989) Izv. Akad. Nauk SSSR. Ser. Khim.,1549.

[35] Pat. 08 41045 (1996) Japan ; (1996) C. A. 124: 343275v.

[36] Pat. England 1366691 (1974) (ICI)

[37] Eur. Pat. Appl. EP 420235 (1991); (1991) C. A. 115:8304r.

[38] Ishikawa N, Nagashima A (1976) Bull. Chem. Soc. Jpn., 49:502.

[39] Maruta M, Ishikawa N (1979) J. Fluorine Chem., 13: 111.

[40] Maruta M, Ishikawa N (1978) Nippon Kaguku Kaishi., 253.

[41] Maruta M, Ishikawa N (1979) J. Fluorine Chem., 13:421.

[42] Pat. 62-178551 (1987) Japan ; (1988) C. A. 108:55648w.

[43] Makarov KN, Gervits LL, Cheburkov YA, Knunyants IL (1977) J. Fluorine Chem., 10:323.

[44] Lindner PE, Lemal DM (1997) J. Am. Chem. Soc., 119:3259.

[45] Chambers RD, Roche AJ (1996) J. Fluorine Chem., 79:121.

[46] Chen LF, Wang JH, Wu WC (1983) Acta Chim. Sinica., 41:457; (1983) C. A. 99:87624x.

[47] Chen LF, Wang JH (1983) Acta Chemica Sinica., 41:375 ; (1983) C. A. 99:53032n.

[48] Chen LF (1994) J.Fluorine Chem., 67:95.

[49] Jung JH, Jeong YT, Choi SK (1994) J. Fluorine Chem., 66:39.

[50] Chi KW, Furin GG Bull. Korea Chem. Soc., in press.

[51] Bekker RA , Popkova VY, Knunyanz IL (1977) Dokl. USSR, 233:591.

[52] Briscoe MW, Chambers RD, Mullins SJ, Nakamura T, Vaughan JFS (1994) J. Chem. Soc., Perkin Trans 1., 3119.

[53] Pat. DE 2215388 (1972) Ger. Offen.

[54] Kissa E. Fluorinated Subfactants: Synthesis, Properties. Applications. Marcel Dekker, Inc.: New York-Basel-Hong Kong. 1994. 469 P.

[55] Moldavsky DD, Furin GG (1996) Zh. Obshch. Khim., 66:1995.

[56] Pat. 3749793 (1973). USA ; (1973) C. A. 79:108060g.

[57] Snegirev VF, Makarov KN (1985) Izv. Akad. Nauk USSR, Ser. Khim., 2066.

[58] Maruta M, Kubota S, Joshimura N, Kitazune T, Ishikawa N (1980) J. Fluorine Chem., 16:75.

[59] Lin YD, Liang YD (1983) Youji Huaxue., 97; (1983) C.A. 99:70152u.

[60] Lin YD, Liang YD (1981) Acta Chemica Sinica., 39:654.

[61] Chambers RD, Lindley AA, Philpot PD, Fielding HC, Hutchinson J, Whittaker G (1979) J.Chem. Soc., Peikin Traus I., 214.

[62] Zepevalov AY, Fulyakova TI, Peschansky NV, Kodess MI, Kolenko IP (1990) Zh. Org. Khim., 26: 265.

[63] Coe PL, Sellars A, Tatlow JC (1983) J. Fluorine Chem., 23:103.

[64] Coe PL, Mott AW, Tatlow JC (1982) J. Fluorine Chem., 20:243.

[65] Coe PL, Mott AW, Tatlow JC (1990) J. Fluorine Chem., 49:21.

[66] Zepevalov AY, Fulyakova TI, Kolenko IP (1979) Izv. Akad. Nauk SSSR .Ser. Khim., 2812.

[67] Zepevalov AY, Fulyakova TI, Kolenko IP, Lu`ry EP (1979) Izv. Akad. Nauk SSSR, Ser. Khim., 2509.

[68] Clark C, Hermans P, Meth-Cohn O, Moore C, Taljaard HC, Vuuren GV (1986) J. Chem. Soc., Chem.Commun., 1378.

[69] Meth-Cohn O, Moore C, Taljaard HC (1988) J. Chem. Soc., Perkin Trans 1., 2663.

[70] Chambers RD, Vaughan JFS, Mullins SJ (1995) J. Chem. Soc., Chem. Commun., 629.

[71] Chambers RD, Vaughan JFS, Mullins SJ (1996) Res. Chem. Intermed., 22:703.

[72] Snegivev VF, Antipin MY, Chruspalev VN, Struchkov YT (1994) Izv. Akad. Nauk SSSR, Ser. Khim., 1068.

[73] Snegirev VF, Naumenko IA (1994) Izv. Akad. Nauk SSSR, Ser. Khim., 1073.

[74] Snegivev VF, Antipin MY, Struchkov YT (1994) Izv. Akad. Nauk SSSR, Ser. Khim., 1449.

[75]. Snegivev VF, Antipin MY, Struchkov YT (1994) Izv. Akad. Nauk SSSR, Ser. Khim., 951.

[76] Furin GG, Miller AO (1997) Zh. Obshch. Khim., 67:967.

[77] Bigdeli MA, Tipping AE (1992) J. Fluorine Chem., 58:101.

[78] Chen LF, Wang JH, Hu CM (1985) Acta Chim Sinica., 3:245.

[79] Chen LF, Wang JH, Hu CM (1985) Acta Chim. Sinica. Huaxue Xuebao, 43:832; (1986) C. A.105: 78463j.

[80] Makarov KN, Nikolaeva EE, Snegirev VF (1990) J. Fluorine Chem.,48:133.

[81] Kitazume T, Sasaki S, Ishikawa N (1978) J. Fluorine Chem., 12:193.

[82] Hu CM, Long F, Xu ZQ (1990) J. Fluorine Chem., 48:29.

[83] Kurikin MA, German LS, Knunyantz IL (1980) Izv. Akad. Nauk SSSR. Ser. Khim., 2827.

[84] Bartlett S, Chambers RD, Lindley AA, Fielding HC (1980) J. Chem. Soc., Perkin Trans I., 1551.

[85] Chambers RD, Lindley AA, Fielding HC, Moilliet JS, Whittaker G (1978) J. Chem. Soc., Chem. Commun., 475.

[86] Petrova OE, Corlov DV, Kurykin MA (1998) 12 th Europea Sumposium on Fluorine Chemistry. Aug. 29-Sept. 2. Berlin, Germany. Abstracts. PII-70.

[87] Saloutin VI, Skryabina ZE, Burgart YV (1991) J. Fluorine Chem., 54:297.

[88] Saloutin VI, Skryabina ZE, Burgart YV, Chupakhin ON, Font-Altabe M, Solans X, Font-Bardia M (1994) J. Fluorine Chem., 69:25.

[89] Ikeda I, Umimo M, Okahara M (1986) J. Org. Chem., 51:569.

[90] Ikeda I, Kogame Y, Okahara M (1985) J. Org. Chem., 50:3640.

[91] German LS, Postovoi SA, Kargamonova EM, Zeifman YV (1997) Izv. Akad. Nauk SSSR. Ser. Khim., 2024.

[92] Furin GG, Zhuzhgov EL (1998) Zh. Obshch. Khim., 69: 42.

[93] Del`tsova DP, Gervits LL, Kadyrov AA (1996) J. Fluorine Chem., 79:97.

[94] Tsukamoto J, Ishikawa N (1972) Chem. Lett., 577.

[95] Chi KW, Kim SJ, Furin GG (1999) J. Fluorine Chem., 96:1.

[96] Ishikawa N, Kitazume T, Chino K, El-said Mustafa M (1981) J. Fluorine Chem., 18:447.

[97] Zeifman YV, German LS (1981) Izv. Akad. Nauk SSSR. Ser.Khim., 701. 1994, 1678.

[98] Huang WY, Chen QG (1987) Adv. Sci. China Chem., 2:31.

[99] Furin GG, Zhuzhgov EL (1997) Zh. Obshch. Khim., 68:42.

[100] Chen LF, Wu JL, Wang JH (1984) Acta Chim. Sinica., 42:470.

[101] Chen LF, Wu JL, Wang JH (1983) Acta Chim. Sinica., 41:668; C.A. 99:194379t.

[102] Chen LF, Wang ZG (1986) Acta Chim. Sinica., 44:302; C.A. 106:4489w.

[103] Bartlett S, Chambers RD, Lindley AA, Fielding HC (1980) J. Chem. Soc., Perkin Trans 1., 1551.

[104] Coe PL, Sellars A, Tatlow JC (1985) J. Chem. Soc., Perkin Trans 1., 2185.

[105] Coe PL, Sellars A, Tatlow JC (1986) J. Fluorine Chem., 32:135.

[106] Flowers WT, Haszeldine RN, Owen C, Thomas A (1974) J. Chem. Soc., Chem. Commun., 134.

[107] Bargamov GG, Bergamova MD (1996) J. Fluorine Chem., 79:39.

[108] Bergamova MD, German LS (1991) Izv. Akad. Nauk SSSR, Ser. Khim., 1463.

[109] Bestman HJ, Kumar K, Kiselowski L (1983) Chem. Ber. 116:2378.

[110] German LS, Posrovoy SA, Kagramanova EM, Zeifman YV (1997) Izv. Akad. Nauk, Ser. Khim., 2024.

[111] Ishikawa N, Kobayashi E (1982) A Fluorine. Chemistry and application. P. 112.

[112] Snegirev VF, Zacharova EV, Makarov KN, Knunyantz IL (1983) Izv. Acad. Nauk SSSR. Ser. Khim., 2561.

[113] England DC, Piecara JC (1981) J. Fluorine Chem., 17:265.

[114] Kadyrov AA, Gervits LL, Komarova LF, Makarov KN (1989) J. Fluorine Chem., 45:152.

[115] Moldavsky DD, Kaurova GI, Bispen TA, Furin GG (1993) J. Fluorine Chem., 63:193.

[116] Furin GG, Dubovenko ZD, Moldavsky DD (1996) Zh. Prikl. Khim., 69:103; (1996) C. A. 125: 328057c.

[117] Kropovich II, Kurikin MA, Studrev YN. et al. Synthesis, Properties and application fluoro-containing of ketones and diketones. Sverdlovsk: of Science. 1979. P. 29.

[118] Eleev AF, Panfilova NV, Stepanov AA (1994) 1th International Conference " Chemistry, technology and application fluorocompounds in the industry ". Russia. May 30 of June 3. Abstracts 1994. P3-7. P. 115.

[119] Ono T, Yamanouchi K, Scherer KV (1995) J. Fluorine Chem., 73:267.

[120] Brunskill W, Flowers WT, Gregory R, Haszeldine RN (1970) J. Chem. Soc., Chem. Commun., 1444.

[121] Ishikawa N, Sekiya A (1972) Nippon Kagaku Kaishi, 14.

[122] Martini T, v. Halasz SP (1974) Tetrahedron Lett., 2129.

[123] Furin GG, Rogoza AV (1997) Izv. Acad. Nauk SSSR. Ser. Khim., 835.

[124] Bayliff AE, Chambers RD (1988) J. Chem. Soc., Perkin Trans I., 201.

[125] Yamanaka H, Shiomi K, Ishihara T (1995) Tetrahedron Lett., 36:7267.

[126] Yamanaka H, Yamashita S, Ishiharo T (1993) Synlett., 353.

[127] Chambers RD, Magron C, Sandford G (1999) J. Chem. Soc., Perkin Trans, 1, 283.

[128] Chambers RD, Sargent CR (1981) Adv. Heterocycl. Chem., 23:1.

[129] Silvester MJ (1994) Adv. Heterocycl. Chem., 59:1.

[130] Brooke GM (1997) J. Fluorine Chem., 86:1.

[131] Bayliff AE, Bryce MR, Chambers RE, Matthews RS (1985) J. Chem. Soc., Chem. Commun., 1018.

[132] Delyagina NI, Dyatkin BL, Knunyants IL (1974) Izv. Akad. Nauk SSSR. Ser. Khim., 1666; (1971) C.A., 81:104647.

[133] Makarov KN, Gerwits LL, Knunyants IL (1977) J. Fluorine Chem., 10:157.

[134] Kondratenko NV, Popov VI, Yurchenko LG, Kolomiitsev AA, Yagupol`skii LM (1978) Zh. Org. Khim., 14:1914; (1979) C.A. 90:54603.

[135] Postovoi SA, Kagramanova EM, Zeifman YV (1988) Izv. Akad. Nauk SSSR. Ser. Khim., 1176; (1989) C.A. 111:153710w.

[136] Gerstenberger MRC, Haas A (1981) Angew. Chem. Int. Ed. Engl., 20: 647.

[137] Liotta CL, Harris HP (1974) J. Am. Chem. Soc., 96: 2250.

[138] Aksenov VV, Vlasov VM, Moryakina IM, Rodionov PP, Fadeeva VP, Chertok VS, Yakobson GG (1985) J. Fluorine Chem., 28:73.

[139] Pat. 4535184 (1985) US; (1986) C.A. 104:109018d.

[140] Farnham WB, Dixon DA, Calabrese JC (1988) J. Am. Chem. Soc., 110:2607.

[141] Smart BE, Middleton WJ, Farnham WB (1986) J. Am. Chem. Soc.,108:4905.

[142] Ikeda H, Watanabe H, Hirao T, Kurosawa H (1994) J. Fluorine Chem., 69: 97.

[143] Pasenok V, de Ross ME, Appel WK (1996) Tetrahedron., 52:9755.

[144] Burton DJ, Howells RD, van der Valk PD (1977) J. Am. Chem. Soc., 99:4830.

[145] Mirzabekyants NS, Gerwits LL, Cheburkov YA, Knunyants IL (1977) Izv. Akad. Nauk SSSR. Ser. Khim., 2772; (1979) C.A. 90:120923.

[146] Gross U, Pfeiffer D, Burdon J (1998) 12th European Symposium on Fluorine Chemistry. Aug. 29 - Sept. 2, Berlin, Germany; Abstracts, PII-60.

[147] Dmowski W, Wozniacki R (1987) J. Fluorine Chem., 36:385.

[148] Farnham WB, Dixon DA, Calabrese JC (1988) J. Am. Chem. Soc., 110:8453.

[149] Chambers RD, Gray WK, Korn SR (1995) Tetrahedron, 51:13167.

[150] Pat. 63 107945 (1988) Japan ; (1988) C. A. 109:210666s.

[151] Pat. 62 226932 (1987) Japan ; (1988) C. A. 109:149040q.

[152] Pat. 03 74340 (1991) Japan ; (1991) C. A. 115:91817d.

[153] Pat. 03 246243 (1991) Japan ; (1992) C. A. 116:128362a.

[154] Pat. 04 26658 (1992) Japan ; (1992) C. A. 117:69549n.

[155] Maisch A (1996) Labor Praxis, 20: 66, 68, 70, 72-73; (1996) C. A. 124:359510d.

[156] Farnham WB, Dixon DA, Calabrese JC (1988) J. Am. Chem. Soc., 110:8453.

[157] Suzuki H, Satake H, Uno H, Shimizu H (1987) Bull. Chem. Soc. Jpn., 60:4471.

[158] Pat. 63 185956 (1988) Japan ; (1989) C. A. 110:23534f.

[159] Ishikawa N, Nagashima A (1975) Nippon Kagaku Kaishi, 1439.

[160] Burton DJ, Inouye Y (1982) Chem. Lett., 201.

[161] Chambers RD, Magron C, Sandford G, Howard JAK, Yufit DS (1999) J. Fluorine Chem., 97:69.

[162] Dressler RL, Uoung JA (1967) J. Org. Chem., 32:2004.

[163] Pat. 5427656 (1995) US.

[164] Delyagina NI, Cherstkov VF, Sterlin SP, German LS (1994) 1-th International Conference " Chemistry, technology and application fluporocompounds in Industry ". Russia. St. Petersburg. May 30 of June 3. Abstracts 1994. P 4-29. P. 193.

[165] Delagina NI, Chestkov VF, Sterlin SP, German LS (1996) Izv. Akad. Nauk. Ser. Khim., 574; (1995) C. A., 123:339074.

[166] Chambers RD, Clark DT, Kilcast DT, Partington S (1974) J. Polym. Sci., Polym. Phys. Ed., 12:1647.

[167] Chambers RD, Partington S, Speight DB (1974) J. Chem. Soc., Perkin Trans 1., 2673.

[168] Narita T, Hagiwara T, Hamana H, Nishimura S (1992) Makromol. Chem. Rapid. Commun., 13:189.

[169] Miller WT, Hummer RJ, Pelosi LF (1973) J. Am. Chem. Soc., 95:6850.

[170] Chambers RD, Nishimura S, Sandford G J. Fluorine Chem.

[171] Dresdner RD, Tlumac FN, Young JA (1965) J. Org. Chem., 30:3524.

[172] Brunskill W, Flowers WT, Gregory R, Haszeldine RN (1970) J. Chem. Soc., Chem. Commun., 1444.

[173] Stepanov AV, Rozhkov IN (1983) Izv. Akad. Nauk SSSR, Ser. Khim., 809.

[174] Graham DP (1966) J. Org. Chem., 31:955.

[175] Chambers RD, Jackson JA, Partington S, Philpot PD, Young AC (1975) J. Fluorine Chem., 6:5.

[176] Chambers RD, Taylor G, Powell RL (1980) J. Chem. Soc., Perkin Trans I., 429.

[177] Chambers RD, Gribble MY, Marper E (1973) J. Chem. Soc., Perkin Trans, I, 1710.

[178] Chambers RD, Taylor G, Powell RL (1980) J. Chem. Soc., Perkin Trans, I, 426.

[179] Pruett RL, Bahner CT, Smith HA (1952) J. Am. Chem. Soc., 74:1638.

[180] Chambers RD, Taylor G, Powell RL (1978) J. Chem. Soc., Chem. Commun., 433.

[181] Chambers RD, Gribble MY, Marper E (1973) J. Chem. Soc., Perkin Trans, I, 1710.

[182] Chambers RD, Nakamura T (1990) 15th Symposium on Fluorine Chemistry. Tokyo. Japan. Oct. 22-23.. Abstr. O-26. P. 88-89.

[183] Briscoe MW, Chambers RD, Mullins SJ, Nakamura T, Drakesmith FG (1990) J. Chem. Soc., Chem. Commun., 1127.

[184] Chambers RD, Nakamura T (1991) J. Fluorine Chem., 54:257.

[185] Chambers RD, Matthews RS, Taylor G, Powell RL (1980) J. Chem. Soc., Perkin Trans, I, 435.

[186] Feiring AE, Hovey MC, Arthur SD (1984) J. Fluorine Chem., 24:125.

[187] Chambers RD, Lindley AA (1978) J. Fluorine Chem., 12:337.

[188] Belen`kii GG, Savicheva GI, Lur`ye EP, German LS (1978) Izv. Akad. Nauk SSSR. Ser. Khim., 1640; (1978) C. A. 89:162986.

[189] German LS (1991) The seventh regular meeting of Japanese-Soviet Fluorine Chemists. Fukuoka. Japan. May 15-16. Abstracts. Vol. 2. P. 19-1-19-10.

[190] Petrov VA, Belen`kii GG, German LS (1982) 1th All-Union Conference on Organofluorine Chemistry. Tashkent. USSR. Abstracts. P. 202.

[191] Petrov VA, Krespan CG, Smart BE (1998) J. Fluorine Chem., 89:125.

[192] Petrov VA, Belen`kii GG, German LS (1989) Izv. Akad. Nauk SSSR. Ser. Khim., 385.

[193] Petrov VA, Belen`kii GG, German LS (1982) Izv. Akad. Nauk SSSR. Ser. Khim., 2411.

[194] Filyakova TI, Belen`kii GG, Lur`ye EP, Zapevalov AY, Kolenko IP, German LS (1979) Izv. Akad. Nauk SSSR. Ser. Khim., 681.

[195] Petrov VA, Belen`kii GG, German LS (1981) Izv. Akad. Nauk SSSR. Ser. Khim., 1920.

[196] Petrov VA, Belen`kii GG, German LS (1989) Izv. Akad. Nauk SSSR. Ser. Khim., 391.

[197] Pat. 62-193946 (1989) Japan.

[198] Halasz SP, Kluge F, Martin T (1973) Chem. Ber., 106:2950.

[199] Tortelli V, Tonelli C, Corvaja C (1993) J. Fluorine Chem., 60:165.

[200] Coe PL, Sellers S, Tatlow JC, Fielding HC, Whittaker G (1981) J. Fluorine Chem., 18:417.

[201] Pat. 60 01143 (1985) Japan ; (1985) C. A. 103:5883v.

[202] Pat. 06 100474 (1994) Japan ; (1994) C. A. 121:107966p.

[203] Furin GG, Gambaretto GP (1996) Direct fluorination of Organic Compounds. CLEUP (Cooperation Libraria Editrica Universita di Padova), Padova, Italy, 212 P.

[204] Merritt RF, Johnson FA (1966) J. Org. Chem., 31:1859.

[205] Merritt RF (1966) J. Org. Chem., 31:3871.

[206] Merritt RF, Stevens TE (1966) J. Am. Chem. Soc., 88:1822.

[207] Merritt RF (1967) J. Am. Chem. Soc., 89:609.

[208] Pat. 02 131438 (1990) Japan. ; (1990) C. A. 113:97031.

[209] Pat. 76 98202 (1976) Japan. ; (1976) C. A. 85:176818s.

[210] Pat. 286131 Eur. Pat. Appl. EP (1989); (1989) C. A. 110:94500c.

[211] Pat. 57-120600 (1982) Japan. (1982) C. A. 97:163423.

[212] Pat. 2332088 (1975) Germany.

[213] Kobayashi M, Ishii F, Tomioka H, Oka R (1998) 12th European Symposium on Fluorine Chemistry. Aug. 29-Sept. 2. Berlin, Germany. Abstracts, A36.

[214] Oosawa T, Endo S, Murata H, Nakamura S Jpn Kokai Tokkyo Koho JP 06, 100474 (1994); (1994) C. A., 121:107966p.

[215] Moldavsky DD, Bispen TA, Kaurova GI, Furin GG (1999) J. Fluorine Chem., 94:157.

[216] Zabolotsky VF, Kochanov AS, Tiunov AV, Markin IV (1994) Zh. Org. Khim., 30:1219.

[217] Tonelli C, Tortelli V (1990) J. Chem. Soc., Perkin Trans, I, 23 ; (1990) C. A. 113:23037h.

[218] Tonelli C, Tortelli V Pat. 89 01927 (1989) PCT Int. Appl. WO. ; (1989) C. A. 111:114733g.

[219] Pat. 286131 (1988) Eur. EP. ; (1989) C. A. 110:945000.

[220] Pat. 196630 (1986) Eur. EP. ; (1989) C. A. 111:173589.

[221] Scherer KV, Fenaudez RE, Henderson PB, Krusic PJ (1987) J. Fluorine Chem., 35:167.

[222] Scherer KV, Ono T, Yamonouchi K, Fernandez R, Henderson P, Goldwhite H (1985) J. Am. Chem. Soc., 107:718.

[223] Jpn Kokai Tokkyo Koho JP 58-41829 (1983); (1984) C.A. 100:67823.

[224] Novikova M, Zakharov V, Denisov A (1992) J. Fluorine Chem., 58:325.

[225] Scherer KV, Fernander RE, Henderson PB (1987) J. Fluorine Chem., 35:7.

[226] Allayarov SR, Barkalov IM, Goldansky VI (1986) Izv. Akad. Nauk SSSR. Ser. Khim., 2394.

[227] Allayarov SR, Barkalov IM, Kim IP (1999) J. Fluorine Chem., 96:57.

[228] Ono T, Fukaya H, Abe T (1997) The 21st Fluorine Conference of Japan. Hokkaido. Japan. Oct. 8-9. Abstracts P-29. P. 152.

[229] Ono T, Fukaya H, Hayashi E, Saida H, Abe T, Henderson PB, Fernandez RE, Scherer KV (1999) J. Fluorine Chem., 97:173.

[230] Allayarov SR, Sumina IV, Barkalov IM, Bachmutov YL, Asamov MK (1989) High schools. Chemistry and chemical technology. 32:26; (1990) C.A. 112:197451h.

[231] Scherer KV (1986) J.Fluorine Chem., 33:298.

[232] Allayarov SP (1994) Zh. Org. Khim., 30:1147; (1995) C.A. 123:32384c.

[233] Tumanskii BL, Delyagina NI, Cherstkov VF, Sterlin SR, German LS (1994) 1th International Conference “Chemistry, Technology and Application of Fluorocompounds in Industry”, May 30 - June 3. St. Petersburg, Russia. Abstracts. P4-35. P. 199.

[234] Cherstkov VF,Tumanskii BL, Delyagina NI, Sterlin SR, German LS (1996) J. Fluorine Chem., 79:93; (1996) C. A. 125:247106r.

[235] Tumanskii BL, Cherstkov VF, Delyagina NI, Sterlin SR, Bubnov NN, German LS (1995) Russ. Chem. Bull., 44:962.

[236] Allayarov SR, Barkalov IM (1997) 2th International Conference " Chemistry, technology and application fluoro-compounds". St. Petersburg. Russia. Sept. 23-26. Abstracts P1-16. P. 46.

[237] Krusic PJ, Scherer KV (1987) J. Fluorine Chem., 35:44.

[238] Allayarov SR, Barkalov IM, Kuzina SI, Loginova NN, Michaylov AI (1988) Chemistry high Energy, 22: 333.

[239] Allayarov SR, Gordon DA, Sumina IV, Barkalov IM, Michaylov AI (1989) Izv. Akad. Nauk SSSR. Ser. Khim., 184.

[240] Buchachenko AL, Vasserman AI (1973) Stable radicals. Moskow. "Chemistry". P. 408.

[241] Allayarov SR, Barkalov IM, Kim IP (1992) Mendeleev Commun., 139.

[242] Allayarov SR, Demidov SV, Kiruchin DP, Michaylov AI, Barkalov IM (1983) Chemistry high Energy.17: 178.

[243] Allayarov SR, Demidov SV, Kiruchin DP, Michaylov AI, Asamov MK, Barkalov IM (1984) DAN SSSR, 274:91.

[244] Gross U, Rudiger S, Dimitrov A (1996) J. Fluorine Chem., 76:139.

[245] Allayarov SR, Asamov MK, Sumina IV, Barkalov IM (1989) High schools. Chemistry and chemical technology. 32:34; (1990) C. A.112:157556q.

[246] Tumanskii BL, Bubnov NN, Polishuk VR, Solodovnikov SP (1981) Izv. Akad. Nauk SSSR. Ser. Khim., 2222.

[247] Corvaja C, Cremonese F, Navarrini W, Tonelli C, Tortelli V (1995) Tetrahedron Lett., 36:3543.

[248] Conti F, Corvaja C, Cremonese F (1995) J. Chem. Soc., Faraday Trans, 91:3813; (1996) C.A.124: 116550n.

[249] Sterlin SR, Cherstkov VF, Tumanskii BL, Avetisyan EA (1996) J. Fluorine Chem., 80:77.

[250] Cherskov VF, Avetisyan EA, Tumanskii BL, , Sterlin SR, Bubnov NN, German LS (1990) Russ. Chem. Bull., 39:2223.

[251] Avetisyan EA, Tumanskii BL, Cherskov VF, Sterlin SR, German LS (1993) Russ. Chem. Bull., 42:207.

[252] Avetisyan EA, Tumanskii BL, Cherskov VF, Sterlin SR, German LS (1995) Russ. Chem. Bull., 44:558; (1995) C.A. 123:339075.

[253] Avetisyan EA, Cherskov VF, Tumanskii BL, Sterlin SR (1998) Izv. Akad. Nauk SSSR. Ser. Khim., 2511.

[254] Avetisyan EA, Tumanskii BL, Cherskov VF, Sterlin SR (1996) Izv. Akad. Nauk Ser. Khim., 1029; (1996) C. A.125:194960.

[255] Avetisyan EA, Tumanskii BL, Cherskov VF, Sterlin SR, German LS (1994) 1th International Conference " Chemistry, technology and application fluorocompounds in Industry ". May 30- June 3. St.Petersburg, Russia. Abstracts, P4-1. P. 158.

[256] Cherskov VF, Avetisyan EA, Tumanskii BL, Sterlin SR, Bubnov NN, German LS (1990) Izv. Akad. Nauk SSSR. Ser. Khim., 2450.

[257] Cherstkov VF, Avetisyan EA, Tumanskii BL, Sterlin SR, German LS (1994) 1th International Conference " Chemistry, technology and application fluorocompounds in Industry ". May 30- June 3. St.Petersburg, Russia. Abstracts, P4-28. P. 191.

[258] Rogovik VM, Aierov AF, Delyagina NI, Cherstkov VF, Sterlin SR, German LS (1992) Bull. Russ. Acad. Sci., Div. Chem. Sci., 41:794.

[259] Tumanskii BL, Chernyavskay NA (1994) Izv. Akad. Nauk SSSR. Ser. Khim., 538.

[260] Tumanskii BL, Shapashnikova EN, Avetisyan EA, Sterlin SR (1999) J. Fluorine Chem., 96:47.

[261] Shaposhnikova EN, Avetisyan EA, Sterlin SR, Bubnov NN, Solodovnikov SP, Chistyakov AL, Stankevich IV, Tumansky BL (1997) Izv. Acad. Nauk. Ser. Khim., 1957.

[262] Avetisyan EA, Tumanskii BL, Cherskov VF, Sterlin SR, German LS (1995) Russ. Chem. Bull., 44:558.

[263] Tumanskii BL, Petrov VA, Grinevskay VK, Solodovnikov SP, Bubnov NN (1988) Izv. Akad. Nauk SSSR. Ser. Khim., 2863; (1989) C.A. 111:39440.

[264] Tumanskii BL, Gervitz LL, Solodovnikov SP, Makarov KN, Lantseva LT, Bubnov NN (1989) Izv. Akad. Nauk. Ser. Khim., 1397; (1990) C.A. 112:548812r.

[265] Tumanskii BL, Kadirov AA, Popova OA, Lantseva LT, Bubnov NN, Solodovnikov SP, Makarov KN (1991) Izv. Akad. Nauk SSSR. Ser. Khim., 1018.

[266] Allayarov SR, Sumina IV, Barkalov IM, Michailov AI (1987) Izv. Akad. Nauk SSSR. Ser. Khim., 2698.

[267] Tumanskii BL, Kurikin MA, Solodovnikov SP, Bubnov NN, German LS (1991) Izv. Akad. Nauk SSSR. Ser. Khim., 730.

[268] Tumanskii BL, Solodovnikov SP, Zacharova EV, Pletnev SI, Makarov KN, Igumnov SM, Rochkov IN, Bubnov NN (1989) Izv. Akad. Nauk. SSSR. Ser. Khim., 2371.

[269] Tumanskii BL, Kiseleva LN, Rogovik VM, Cherstkov VF, Sterlin SR, Bubnov NN, Solodovnikov SP (1989) Izv. Akad. Nauk SSSR. Ser. Khim., 706; (1989) C. A. 111:133564.

[270] Makarov KN, Popova YA, Misov EI, Tumanskii BL, Solodovnikov SP, Bubnov NN (1989) Izv. Akad. Nauk SSSR. Ser. Khim., 198; (1989) C. A. 111:56997h.

[271] Polyshuk VR, Antipina MY, Bachmutov VI et al. (1979) Dokl. Akad. Nauk, 1125.

[272] Pfeifer D, Dimitrov A, Gross U (1995) 12th Winter Fluorine Conference. Jan. 22-27. St. Petersburg, Florida, USA, Abstracts, P10, P.47.

[273] Gervits LL, Kadyrov AA, Makarov KN, Komarova LF, Tumanskii BL, Dimitrov A, Gross U, Rudiger S (1991) 13th International Symposium on Fluorine Chemistry, Bochum, Germany, Sept. 2-6, Abstracts, P 55, P. 305; (1991) J. Fluorine Chem., 54:305.

[274] Gervits LL, Kadyrov AA, Makarov KN, Komarova LF, Tumanskii BL, Dimitrov A, Gross U, Rudiger S (1991) Izv. Akad. Nauk SSSR. Ser. Khim., 255; (1991) C. A. 114:228163?.

[275] Avetisyan EA, Tumanskii BL, Cherstkov VF, Sterlin SR (1996) Izv. Akad. Nauk Ser. Khim., 1029; (1996) C.A. 125:194960.

[276] Ono T, Fukaya H, Noshida M, Terasawa N, Abe T (1996) J. Chem. Soc., Chem. Commun., 1579.

[277] Allayrov SR, Barkalov IM (1988) Izv. Akad. Nauk SSSR. Ser. Khim., 1260.

[278] Allayrov SR, Barkalov IM (1988) Chemistry high energy. 22:207.

   [279] Gordon DA, Allayarov SR, Kuzina SI, Barkalov IM, Michailov AI (1989) Izv. Akad. Nauk SSSR. Ser. Khim., 2203; (1990) C. A. 112:76225d.

Fluorine Notes, 2001, 15, 1-2

Back to volume # 2(15) , March - April 2001
© 1998-2025 Fluorine Notes. All Rights Reserved.
